3001531152 Atlas Copco

3001531152 Atlas Copco

I. Composition and Core Functions of Atlas Copco Backup Thermal Valve Kit

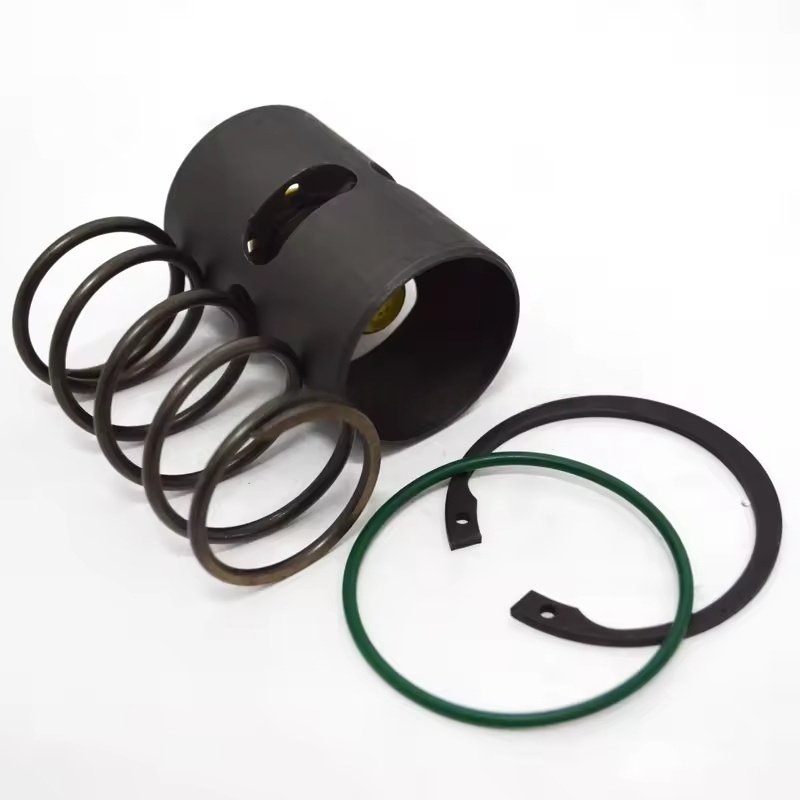

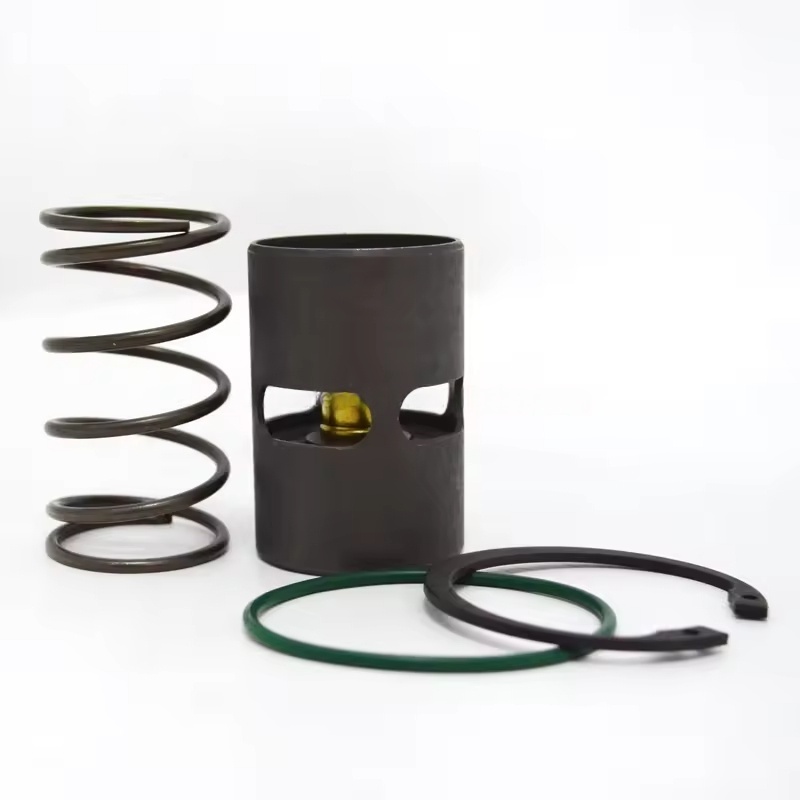

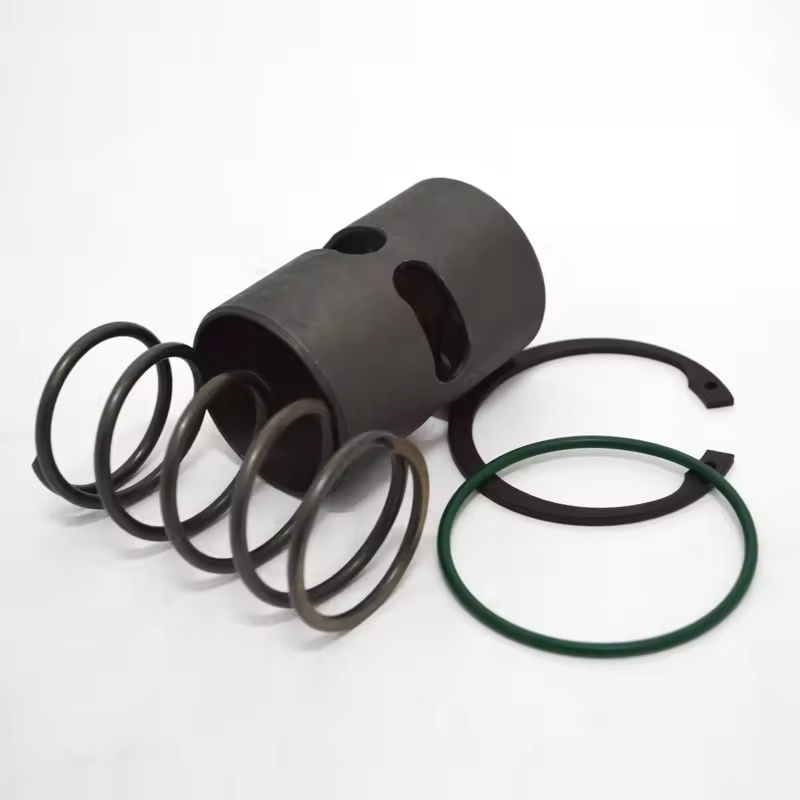

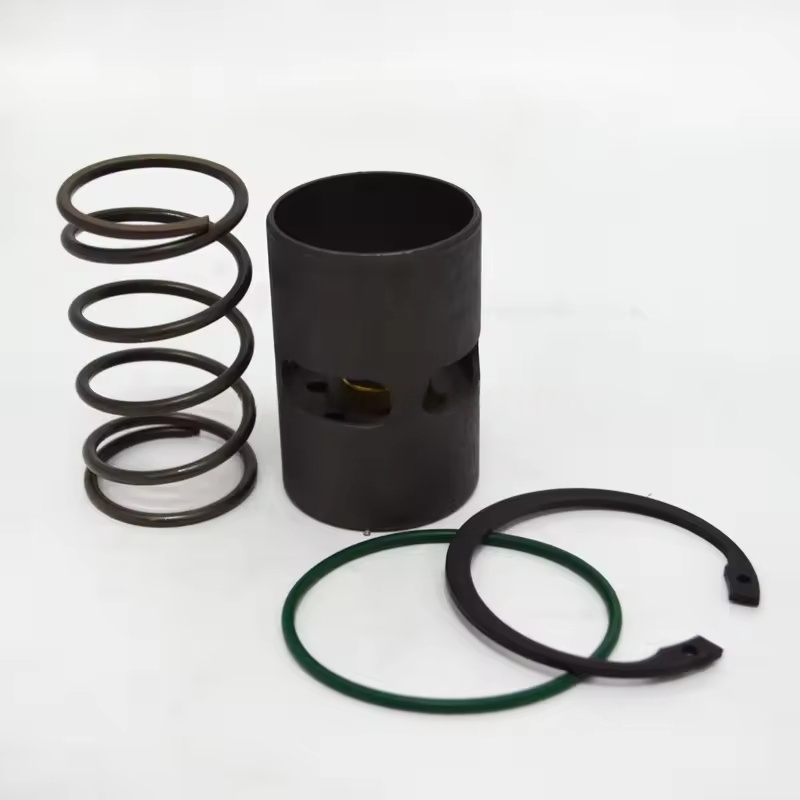

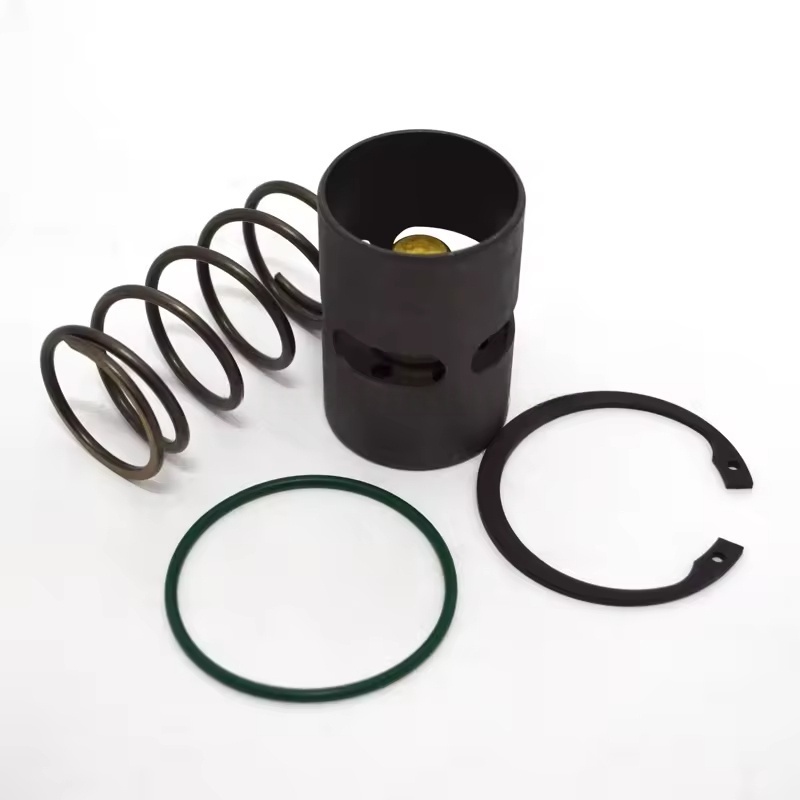

The constant temperature valve assembly typically consists of a constant temperature valve body, temperature sensing element, seals, springs, and installation accessories. Some components may also include cleaning tools or filter replacements. Core Function

It is consistent with the function of an independent temperature control valve. It automatically regulates the flow by monitoring the temperature of oil/liquid:

When the temperature is low, it will close or reduce the cooling path to prevent equipment from experiencing poor lubrication;

When the temperature is high, it will open the cooling path to enhance the heat dissipation effect and prevent the lubricating oil from deteriorating and the components from overheating.

This kit form provides a complete replacement solution, making it convenient to replace all vulnerable components at once during maintenance. 2. Application scenarios and model matching

Applicable equipment: Primarily applicable to screw-type air compressors. The size and interface specifications of different models of constant temperature valves are all different and require strict matching.

Common spare part numbers: For example, the original Atlas factory number 3112 0094 00.

When the constant temperature valve experiences jamming, leakage or control failure, replacing the entire set of components can avoid secondary failures caused by the aging of individual components. 3. Replacement and Installation Instructions

Replacement Timing

When the equipment shows abnormal temperature, the thermostatic valve gets stuck and cannot operate;

Preventive replacement should be carried out according to the specified cycle in the maintenance manual;

When the valve body leaks or the sealing parts age. Installation Precautions

Before replacement, the equipment needs to be shut down first and depressurized to release the oil/liquid pressure in the system, avoiding splashing during disassembly and installation;

Clean the installation surface, remove residual oil stains and impurities, and ensure good sealing;

Tighten the connecting parts according to the original factory's specified torque to prevent leakage;

After installation, start the equipment for testing to confirm that the temperature control has returned to normal.
