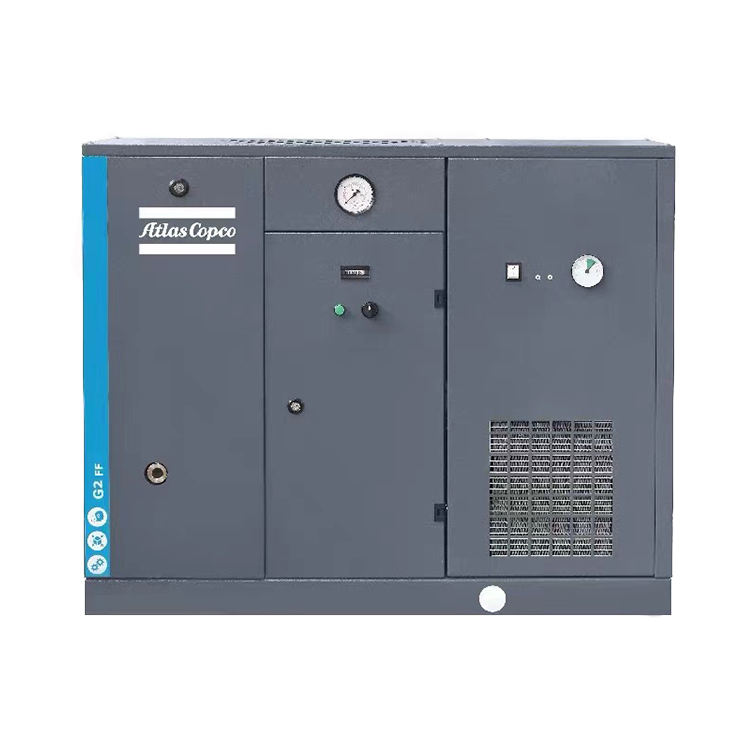

China Atlas Copco Air Screw Compressor Suppliers Manufacturer, Supplier, Factory

Atlas Copco 2906051000,The core function of Atlas Copco is to control the intake flow rate and pressure by adjusting the opening degree of the intake valve, enabling the loading, unloading and capacity adjustment of the air compressor, and ensuring stable output pressure. It also protects the compressor during startup by keeping the intake port slightly open to prevent the machine from becoming overly vacuum and affecting the atomization of the lubricating oil; it also prevents oil spraying during unloading or shutdown to ensure safety. The buffering system regulates pressure fluctuations, balancing the pressure difference at the instant of loading to reduce the impact on the separator and extend the equipment's lifespan.

1900520200 Atlas Copco Overall Layout and Design Features The interface adopts a modern industrial design style, with blue as the main color, complemented by functional colors (green indicates normal, yellow indicates warning, and red indicates error). It presents clear information hierarchy and distinct operation areas. The overall layout is divided into the top navigation area, main functional area, and footer information area. A card-style design is used to enhance the modular display of information.

Atlas Copco 1627456071,The lubricating oil for air compressors is the core medium that ensures the efficient and stable operation of the equipment. Its multi-functional nature requires the lubricating oil to possess appropriate viscosity, high flash point, good oxidation resistance and anti-emulsification properties, among other performance indicators 68. Different compressor types (such as screw type and piston type) and operating conditions (temperature, load) require the selection of specific types of lubricating oil (mineral oil, semi-synthetic or fully synthetic oil), and regular replacement is necessary to prevent performance degradation and resulting equipment failures.

1900520440 Maintenance and Fault Handling of the Oil Temperature Electronic Elektronikon Control Module of Atlas Copco Air Compressors If there are abnormal oil temperature readings, the heating/cooling system does not respond, or the oil temperature protection is triggered frequently, it may be related to this control module. Maintenance suggestions: First, check whether the oil temperature sensor and connection lines are normal. Eliminate front-end signal faults; If the module itself is faulty, it is recommended to replace the original factory parts to ensure control performance. After replacement, calibration of parameters through special tools is required to make it match the model; Regularly check the module status through the self-check function of the Elektronikon system to promptly detect potential problems.

Atlas Copco 2906049700,The core function of the water inlet of Atlas Copco air compressors is to introduce cooling media to meet the cooling requirements during the operation of the equipment. This can be further divided into the following aspects: For water-cooled air compressors, the water inlet is connected to the cooling water supply pipeline, which transports cooling water to components such as cylinder heads and heat dissipation pipes. Through heat exchange, it removes the heat generated during compression, preventing the air compressor from overheating and causing carbon deposits on the exhaust valve plates, damage to the cylinder head gaskets, or a decrease in efficiency. The input of pre-filtered liquid in the air compressor's pre-filter is carried out in the pre-filter. The water inlet is used to introduce condensed water from compressed air or process liquids that need to be treated. After the liquid passes through the filter screen to retain impurities, it achieves pre-treatment, protecting subsequent equipment and process flows. For air compressors with a cooling system circulation inlet equipped with a forced cooling structure, the water inlet is connected to the inlet end of the heat dissipation pipe, which injects cooling water into the cooling pipeline. Through the circulation of water flow, the heat generated by the air compressor body is carried to the drainage port for discharge, improving the cooling efficiency.

Attention points for pressure reducers in Atlas Copco air compressor systems: Matching system pressure: The rated input pressure of the pressure reducer must match the exhaust pressure of the air compressor (for example, if the rated pressure of the air compressor is 10 bar, a pressure reducer with a rated input of ≥ 10 bar should be selected). Downstream load limit: The output pressure should be set according to the rated working pressure of the downstream equipment to avoid overpressure damage to the equipment. Regular calibration: After long-term use, pressure drift may occur, so it is necessary to regularly check and calibrate to ensure stable pressure.
