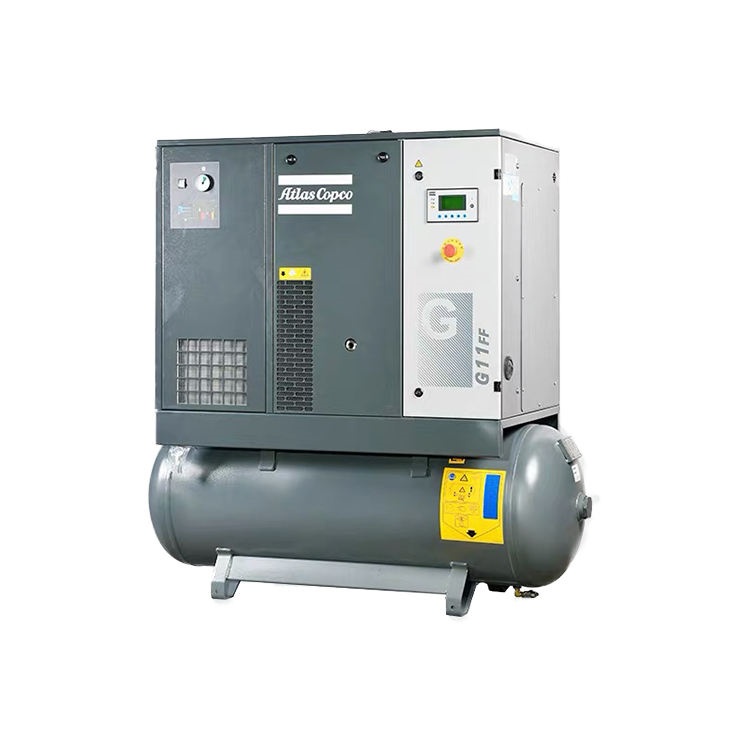

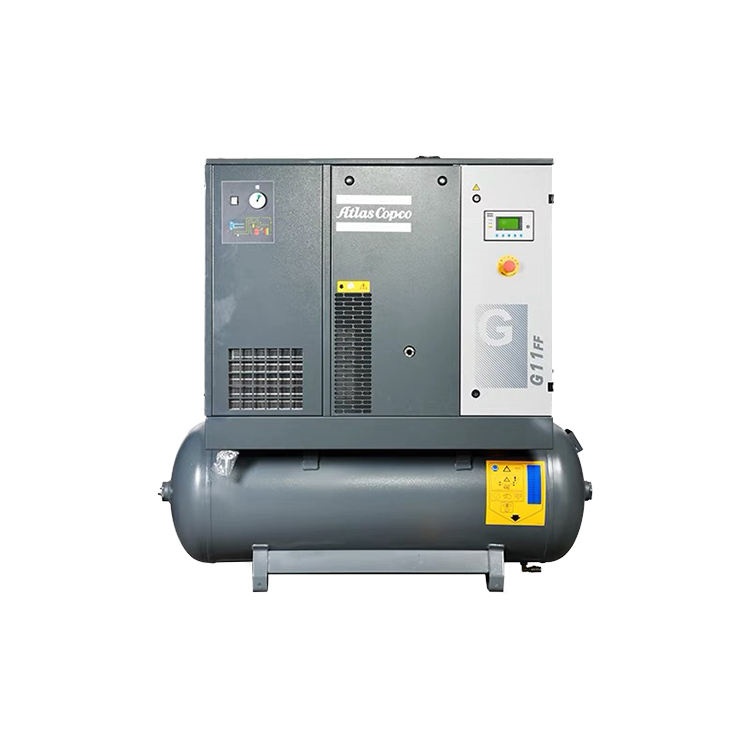

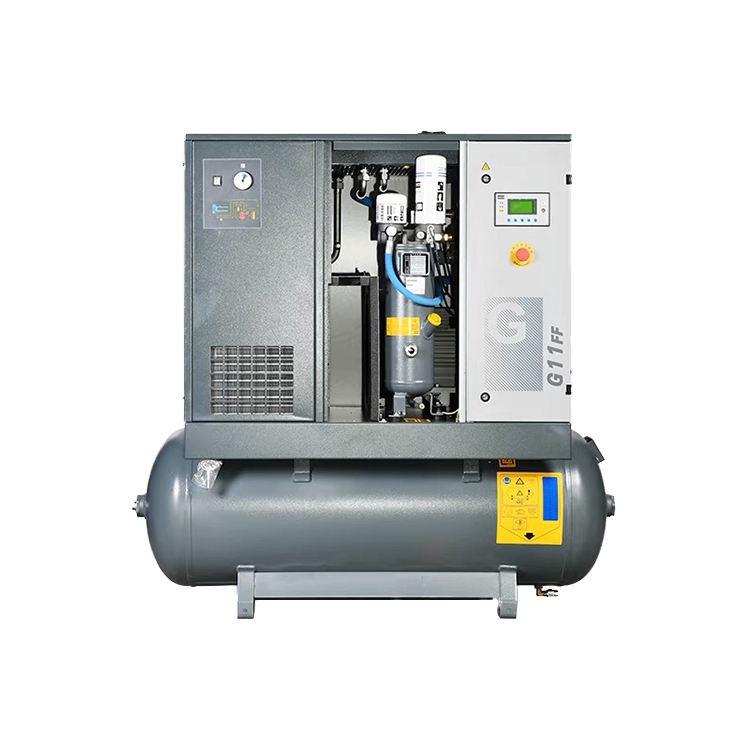

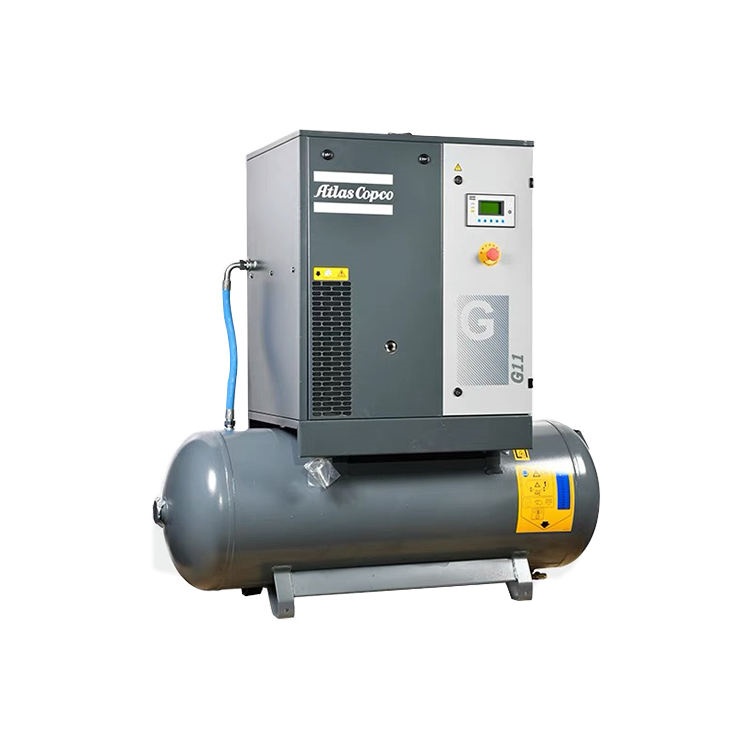

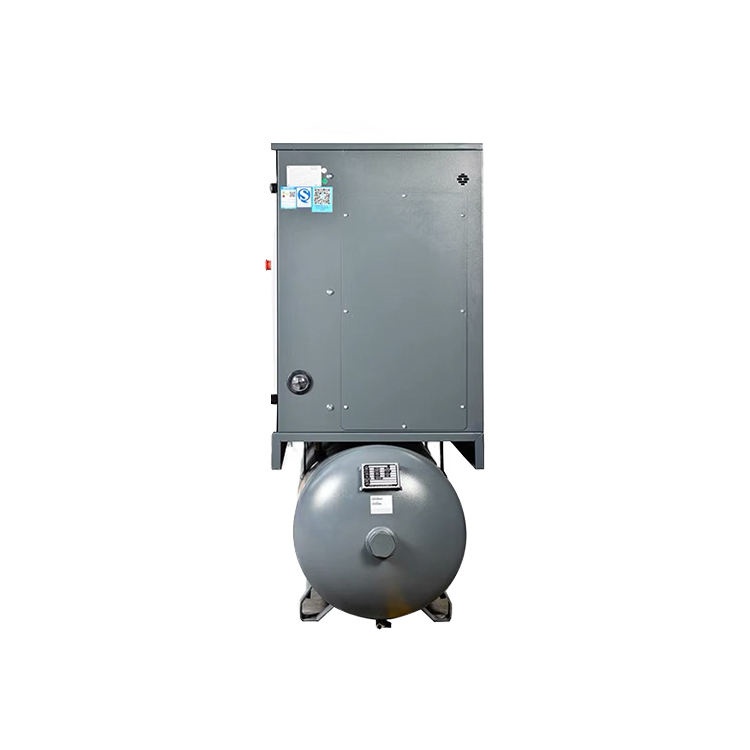

Atlas Copco Manufacture Air Screw Compressor Suppliers With Air Dryer

I. Core Performance Parameters

Displacement: Approximately 0.8 - 1.7 m³/min (specific values may vary depending on specific pressure settings)

Working Pressure: 7 - 10 bar (can be adjusted according to requirements)

Motor Power: 11 kW (approximately 15 horsepower), using an efficient asynchronous motor, compliant with international energy efficiency standards

Power Supply Requirements: 380V/3Ph/50Hz (standard configuration), compatible with industrial general power supply systems

II. Technical Features

Efficient and Energy-saving Design

Integrated with Atlas Copco's patented screw rotor technology, the compression efficiency is 5% - 8% higher than that of ordinary models, reducing unit gas production energy consumption;

Optional VSD variable speed system (variable speed drive) can be selected. According to actual gas usage requirements, the motor speed can be automatically adjusted, achieving a 20% - 30% energy saving in partial load conditions;

Optimized cooling system design ensures stable operation of the equipment in high-temperature environments, reducing efficiency losses due to overheating.

Compact Structure and Low Noise

The overall size is compact (approximately 1200×800×1000 mm), saving installation space, suitable for limited space scenarios such as workshops and laboratories;

Using a fully enclosed soundproof cover and low-noise motor, the operating noise is low to 72 - 75 dB (A), reducing noise pollution to the working environment.

Reliability and Easy Maintenance

Key components (such as screw units, bearings) are manufactured by the original factory with high precision, having a long average trouble-free operation time (MTBF), suitable for continuous operation;

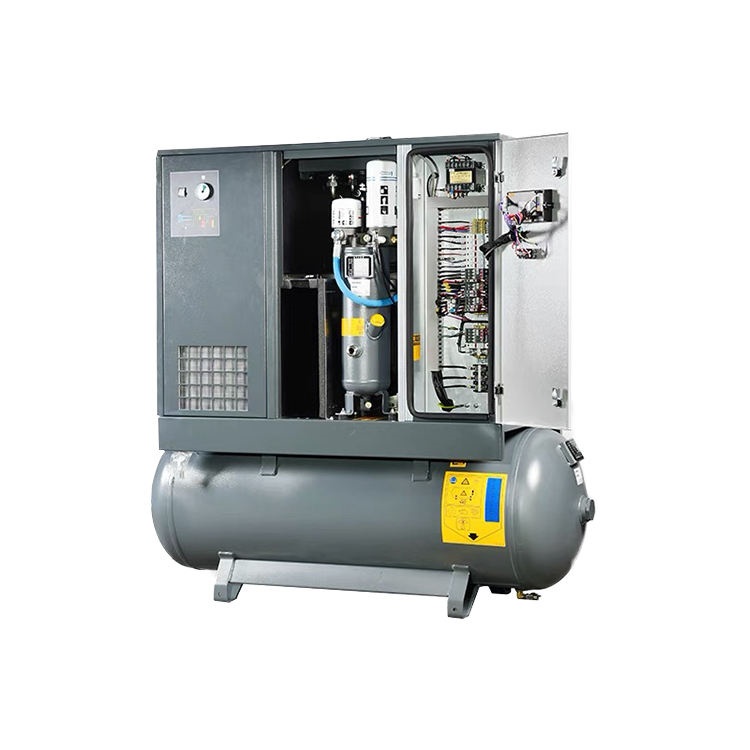

Modular design makes daily maintenance (such as replacing filters, lubricating oil) more convenient. Opening the side door allows access to core maintenance components, reducing downtime;

Standard oil level observation window, pressure gauge, etc., intuitive indication devices for easy operation personnel to quickly check the equipment status.

Intelligent Control Options

The basic model is equipped with a simple control panel, which can display key parameters such as pressure and operating status, supporting manual start/stop and fault alarm;

Optional Elektronikon® intelligent controller can be selected to achieve automatic loading/unloading, remote monitoring, maintenance reminders, etc., improving management efficiency.

III. Application Scenarios

Small and Medium-sized Mechanical Processing Workshops: Drive pneumatic wrenches, grinding machines, etc., tools;

Food Packaging Industry: Provide stable air supply for pneumatic packaging equipment;

Laboratories or Small Production Lines: Meet the requirements of low flow and stable pressure for compressed air;

Auto Repair Shops, 4S Centers: Used for tire inflation, pneumatic tool driving, etc.

IV. Summary of Advantages

Atlas Copco G11FF is centered on "small but excellent", ensuring a 11 kW gas production capacity while also considering energy efficiency, noise control, and maintenance convenience. It is suitable for small and medium-sized enterprises with high requirements for equipment reliability and emphasis on operating costs. Its modular design and optional intelligent control system also provide flexibility for future capacity expansion
