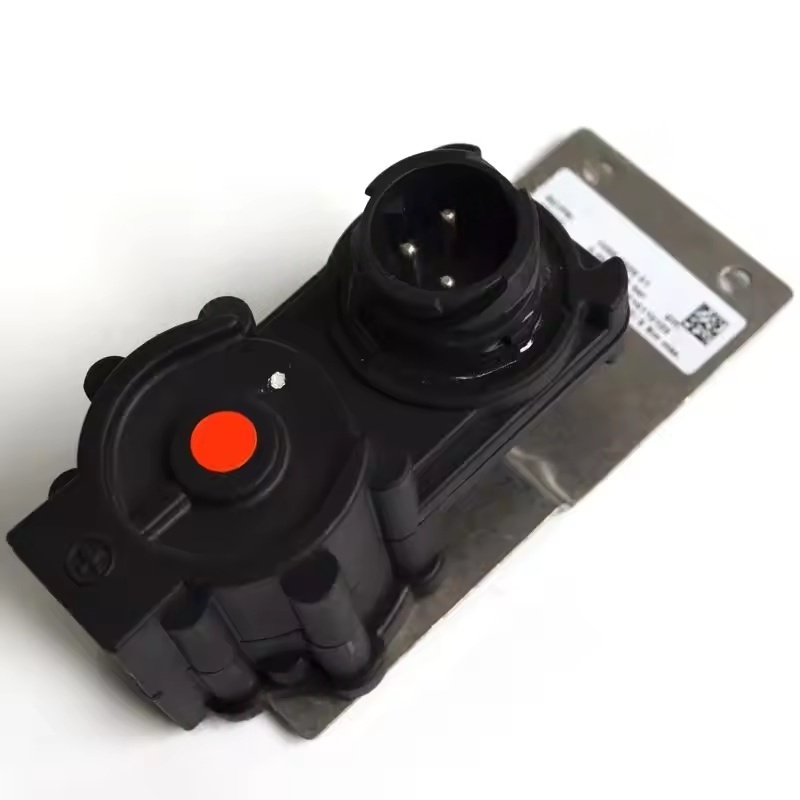

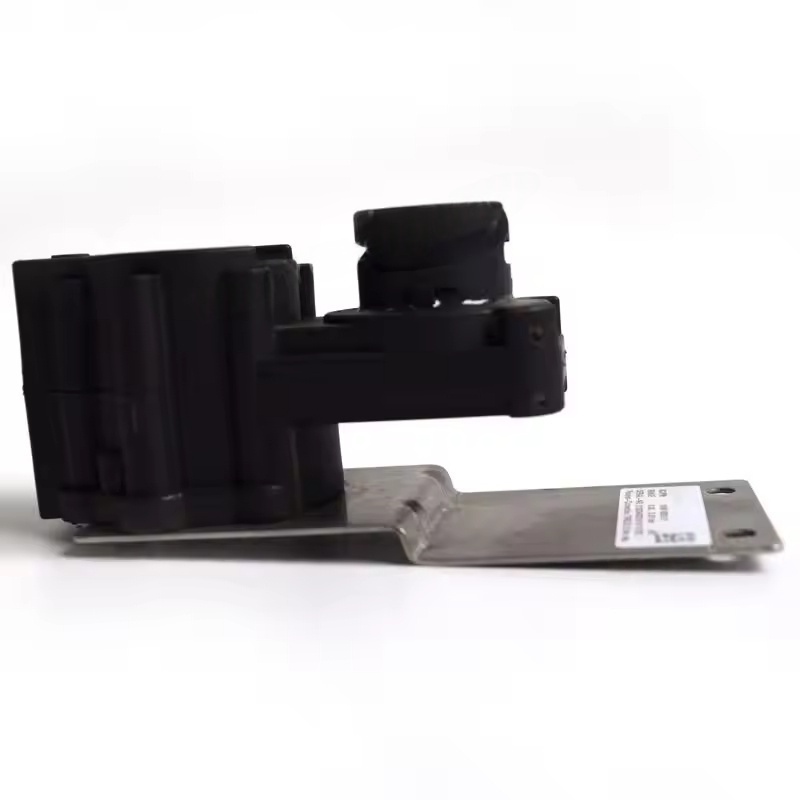

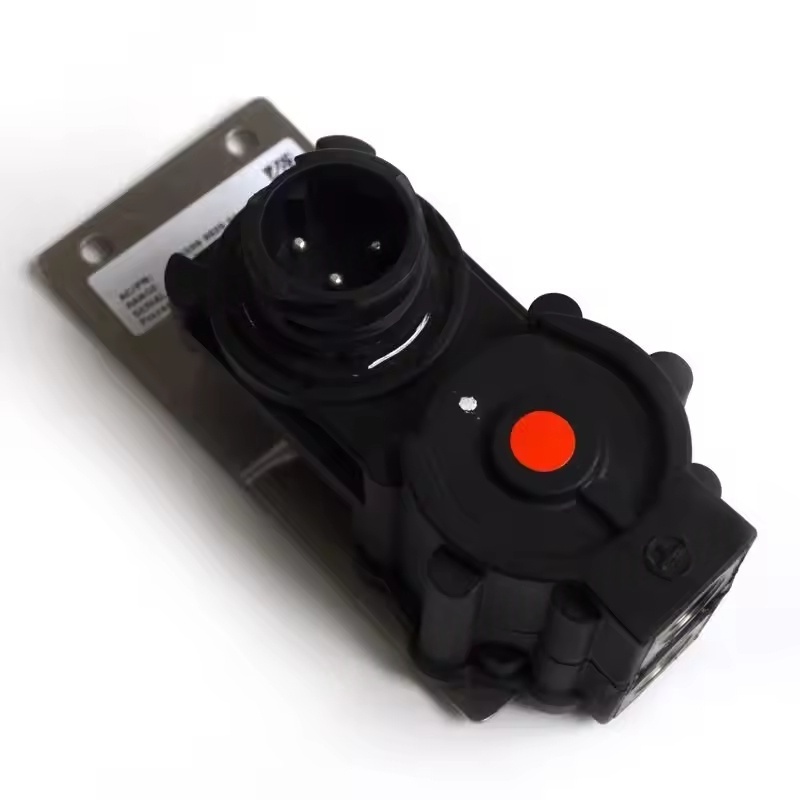

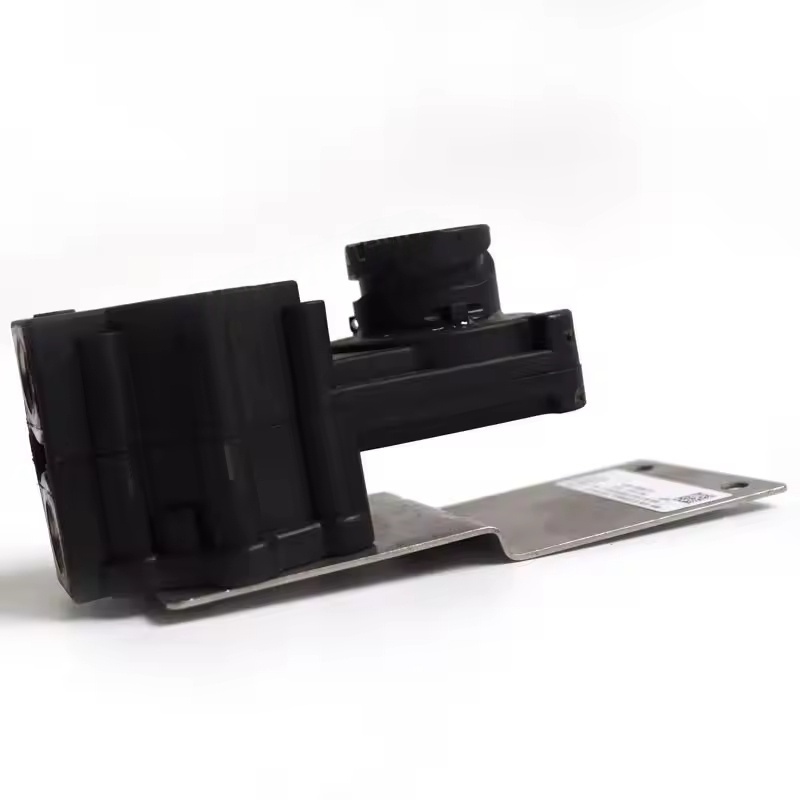

Pressure Sensor 1089962501

The core function of the pressure sensor in Atlas Copco air compressors

The pressure sensor senses the pressure changes in the pipeline or container, converting the physical pressure signal into an electrical signal , and transmits it to the control system of the compressor to achieve the following functions:

Real-time monitoring of key parameters such as exhaust pressure, intake pressure, and oil-gas separator pressure, ensuring the system operates within the set pressure range;

Providing feedback signals for the loading/unloading and pressure regulation of the unit, maintaining stable output pressure;

Triggering protection mechanisms when the pressure exceeds the safety range, preventing equipment from operating under excessive pressure.

Types and Installation Locations

Depending on the monitoring object, common types and installation locations include:

Exhaust pressure sensor: Installed at the exhaust port of the compressor or the inlet of the storage tank, monitoring the output pressure;

Oil-gas separator pressure sensor: Installed in the oil-gas separator chamber, monitoring the internal pressure;

Intake pressure sensor: Installed at the front end of the intake valve, monitoring the intake air pressure;

Cooling water pressure sensor : Monitoring the pressure status of the cooling water circuit.

Design and Performance Characteristics

Using high-precision sensing elements , with high measurement accuracy , fast response speed, ensuring the real-time nature of pressure data;

The housing and components in contact with the medium are made of high-pressure-resistant and corrosion-resistant materials , suitable for the oil-gas environment and pressure range inside the compressor ;

Having good anti-interference ability, able to work stably in the vibration and electromagnetic environment of the compressor operation;

Some models have temperature compensation function, reducing the impact of environmental temperature changes on measurement accuracy.

Original Equipment Advantages

Parameter Matching: The measurement range, output signal, installation interface, etc. of the original factory pressure sensors are fully matched with the control system of specific models, ensuring accurate data transmission and avoiding control abnormalities caused by incompatible signals;

Reliability Guarantee: Tested and verified under strict environmental conditions and durability tests, maintaining stable performance over long-term high-frequency monitoring, reducing the risk of false alarms or failure;

System Integration: Perfectly coordinated with the pressure thresholds and protection logic preset by the compressor's main control program, ensuring the unit can respond promptly in abnormal pressure situations.
