• Maximum oil aerosol, wet dust and water droplet filtration and drainage - High-efficiency glass fiber Nautilus technology ensures a low pressure drop.

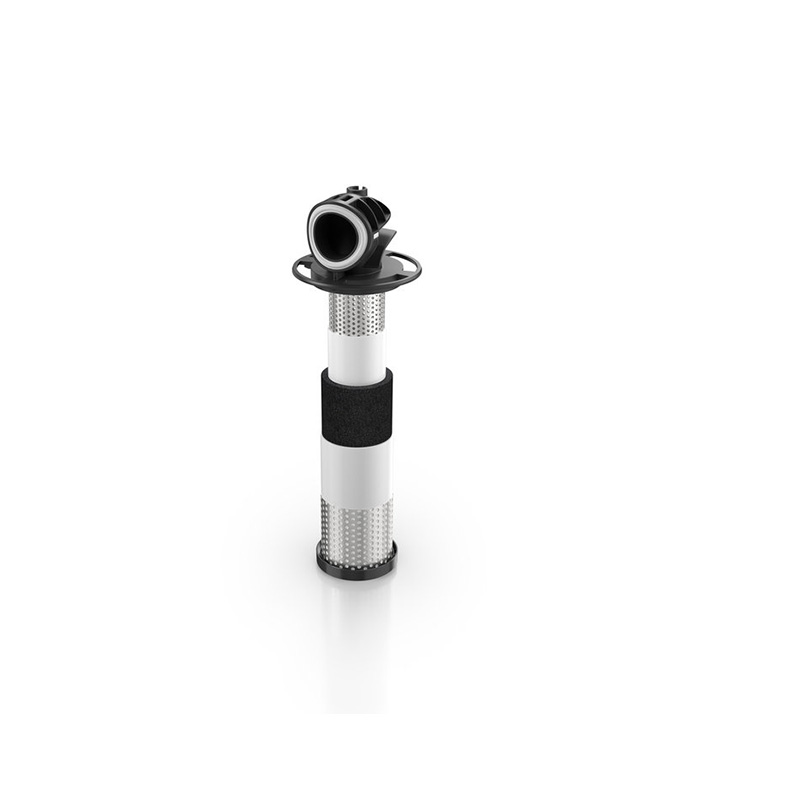

• Patented drainage technology - A coarse 3D-structured layer/barrier provides efficient oil drainage and prevents re-entry of oil droplets into the air stream.
• Minimal operating costs - Optimal design and filter technology allow for low pressure losses.

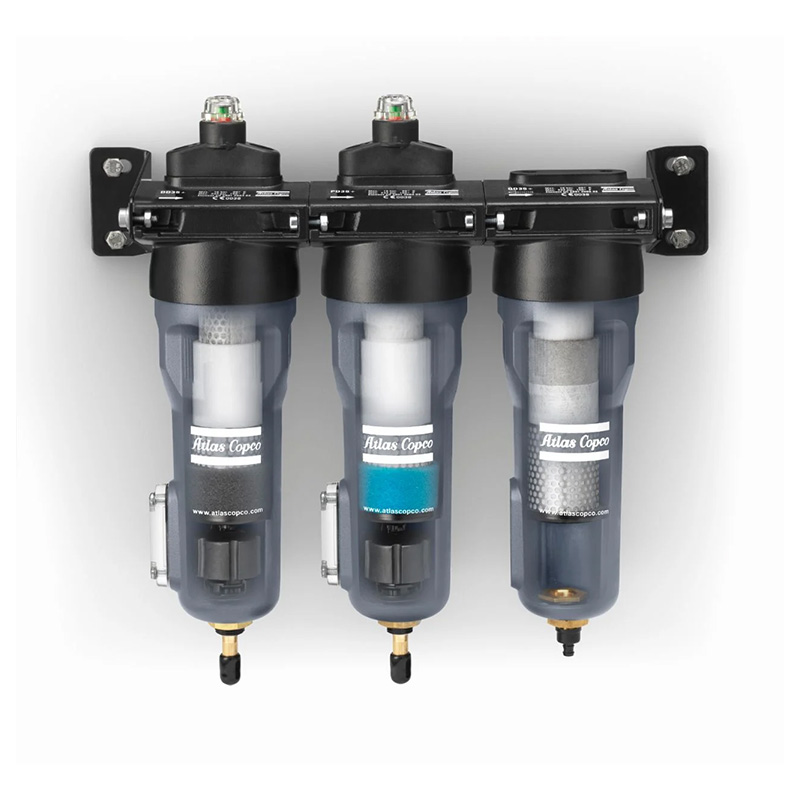

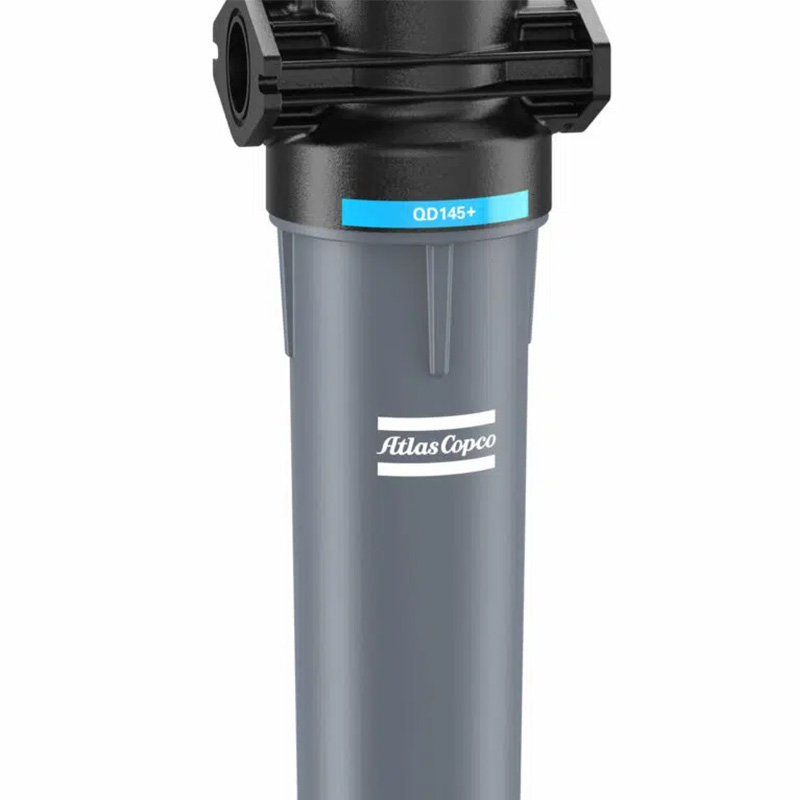

• Cost-saving maintenance - Ribbed housing ensures easy removal of the filter bowl. The push-in element and drain connection were designed for effortless replacement. The service indicator shows (preventive) maintenance alerts.
Performance:
- Contaminant: oil aerosol / wet dust
- Filtration technology: wrapped
- Test method: ISO 8573-2:2018, ISO 12500-1:2007
- Max oil carry-over (mg/m3): 0.008*
- ISO class 8573-1: [1:-:2]
- Element service: after 8'000 hrs or 1 year
- Precede with: water separator & DD+ filter
* Inlet oil concentration = 10 mg/m³. Oil = oil aerosol and liquid.
