China Air Compressor Drainage Solenoid Valve Manufacturer, Supplier, Factory

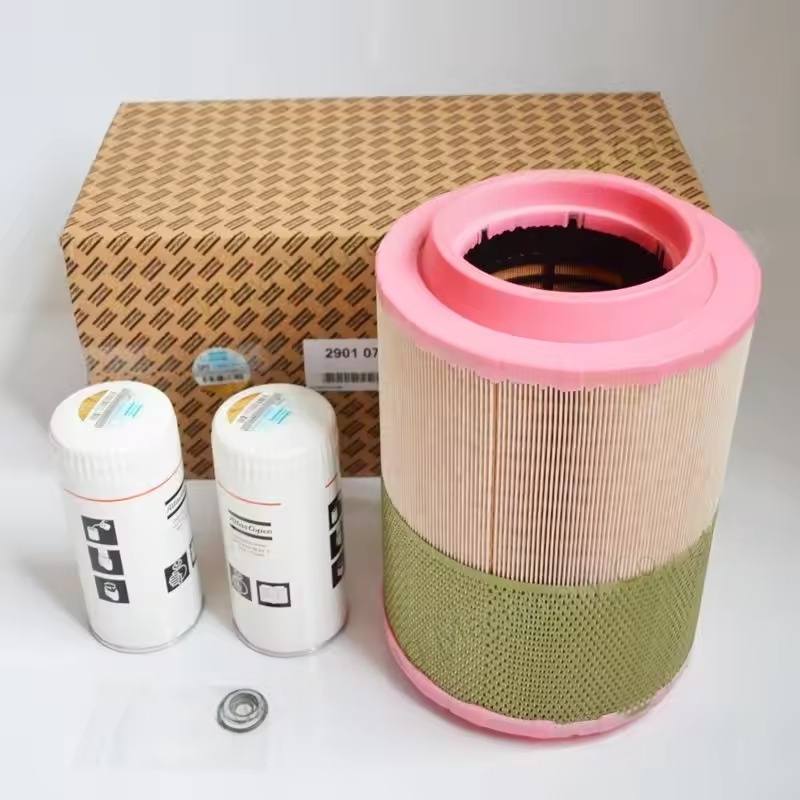

Our genuine Compressor Oil Filters are made from corrosion-resistant materials that lengthen your compressor oil lifetime. Its bypass valve guarantees a continuous oil flow to the compressor element, even in cold-start conditions or in the event of a clogged filter! High-quality synthetic filter paper: temperature and compressor oil-resistant, high-performance, and finely textured. High dirt-holding capacity to extend service intervals while protecting the compressor element. Uniform paper pleat spacing and increased mechanical resistance to pressure fluctuations, resulting in a safer working environment

Air compressors are used for various purposes, including:

Structural composition Valve body: The main body that connects the oil circuit, usually having an oil inlet, a direct outlet, and an outlet for the cooler. Thermosensitive element: The core component, which expands or contracts with temperature changes. Spring: Cooperates with the thermosensitive element to control the opening and closing degree of the valve. Valve core / Valve rod: The actuating mechanism, which regulates the oil flow direction according to the signal from the thermosensitive element.

Key structural design Air intake: Gradually expanding or tangential design, reduces flow velocity and separates large particle impurities. Filter element installation: Vertical or horizontal installation, facilitating replacement and maintenance. Drainage structure: Gravity drainage port or automatic drainage valve, prevents condensate water from soaking the filter element. Sealing design: Uses nitrile rubber or fluorine rubber sealing rings, with compression ratio of 15% to 25%. Quick disassembly structure: Snap-fit or bolt connection, simplifies maintenance procedures.

Never forget to order a spare part and avoid unplanned downtime. As your original equipment manufacturer, we know exactly which parts are needed for every service intervention. These are offered as a single maintenance kit with the quality assurance of genuine Atlas Copco parts.

1. loading solenoid valve ‌ : It adopts a two-position three-position normally closed structure and controls the on-off of the pipeline from the oil and gas tank to the intake valve through PLC instructions. When powered on, allow compressed air to enter the intake valve pipeline and open the intake port. When power is cut off, cut off the air passage and expel the residual air in the cylinder, then close the air inlet 2. Vent solenoid valve ‌ : Open the valve for two positions and two normal positions to ensure that the pressure in the oil and gas tank of the air compressor remains at around 0.2MPa when it is no-load. When the machine is shut down and unloaded, cut off the power and release the gas to the intake filter to prevent excessive pressure
