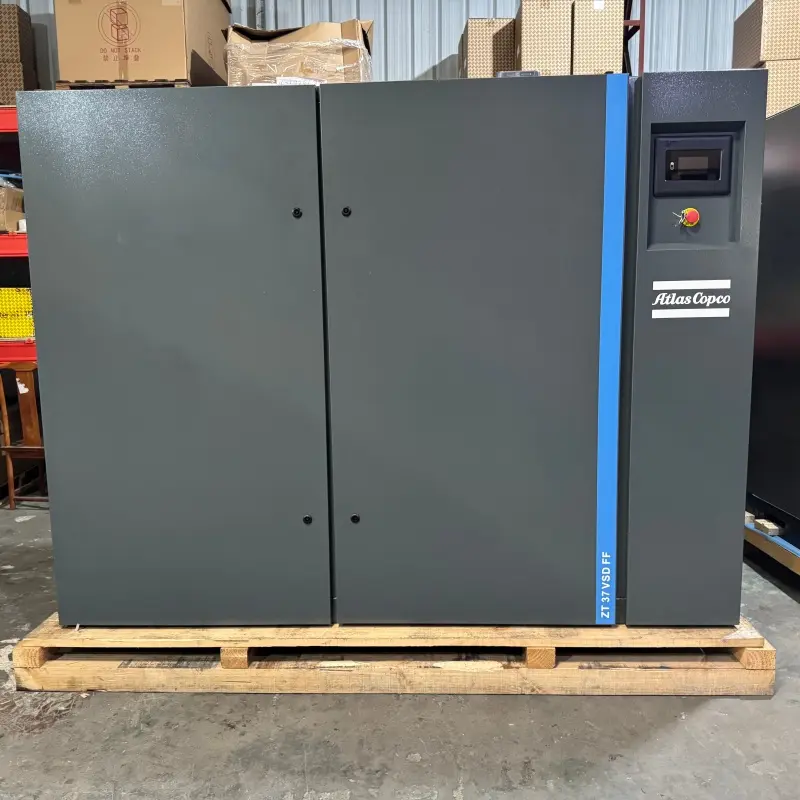

Atlas Copco ZT 37 VSD FF Oil Free Screw Compressor 37KW 50HP Dryer Class 0 Genuine
Warranty:1 Year
Condition:New
Model: ZT37VSDFF
Brand: Atlas Copco
Part Name:Atlas Copco Oil Free Screw Air Compressor
Quality Level: Genuine Original
Lead Time: 1-2 Months
Certificate:ISO9001
Atlas Copco ZT 37 VSD FF Oil Free Screw Compressor China Supplier Promotional Price,contact us now for the best price.
Atlas Copco ZT 37 VSD FF is a genuine 37KW 50HP air-cooled oil-free rotary tooth compressor with a built-in FF refrigerated dryer. It holds official ISO 8573-1 Class 0 certification for 100 percent oil-free air output. Working pressure adjusts dynamically from 4.0 to 10 bar (e), and FAD ranges from 2.5 to 6.1 m³/min under variable speed operation. The rated sound pressure level is 72 dB(A). Unit weight hits 1431 kg for the FF integrated version. The power supply is 400V 50Hz. The condition is brand-new, genuine, and original for 24/7 continuous heavy-duty production. Standard lead time is 30-90 working days subject to order quantity.
Atlas Copco ZT 37 VSD FF is a 37kW oil free rotary tooth screw compressor with an integrated refrigerated dryer. Designed for applications requiring high compressed air purity, this model provides ISO Class 0 certified oil free air output and eliminates the risk of oil vapor contamination in sensitive production processes.
The FF version integrates the refrigerated dryer inside the compressor cabinet, combining compressed air generation and drying functions in one unit. This configuration reduces the need for separate dryer installation, additional piping connections, and extra floor space requirements, making it suitable for facilities with limited installation areas or simplified compressed air layouts.
The ZT 37 VSD FF uses oil free compression technology to produce compressed air without oil contamination from the compression process. This makes the compressor suitable for industries where even small amounts of oil vapor may affect product quality, production safety, or equipment performance.
ISO Class 0 certified air quality is commonly required in applications such as pharmaceutical production, food processing, lithium battery manufacturing, and precision electronics assembly.

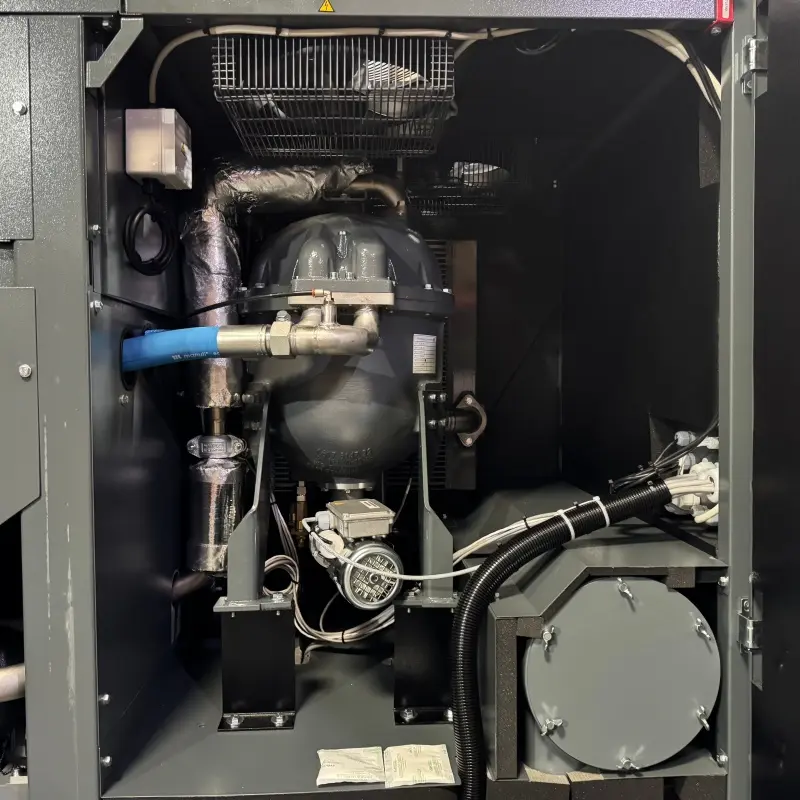

The built-in refrigerated dryer is installed within the main compressor cabinet and is factory matched with the compressor system. The integrated design reduces installation complexity compared with separate compressor and dryer configurations.
Main advantages include:
The integrated dryer helps control moisture content in compressed air and supports stable air quality during daily operation.
The Atlas Copco ZT 37 VSD FF is equipped with a factory-matched Variable Speed Drive system that adjusts motor speed according to actual compressed air consumption.
During periods of lower air demand, the compressor reduces operating speed to avoid unnecessary energy consumption. This control method is suitable for production environments with different air requirements across multiple shifts.
The frequency converter is designed to maintain stable operation under ambient temperatures up to 50°C, supporting use in demanding industrial environments.
The compressor adopts an air-cooled design and does not require a separate cooling water circulation system. This provides more flexibility for factories without existing cooling water infrastructure.
The air-cooled structure reduces additional installation requirements and simplifies maintenance related to cooling systems.
Regular maintenance using genuine Atlas Copco spare parts helps maintain compressor performance and preserve the oil free air end operating condition.
Available maintenance components include:
Following recommended maintenance intervals helps stabilize compressor operation and reduces the risk of unexpected downtime.
Atlas Copco ZT 37 VSD FF is commonly used in industries where oil free compressed air is required, including:
The combination of ISO Class 0 air quality, integrated drying function, and variable speed control makes it suitable for production environments with strict compressed air requirements.
Each Atlas Copco ZT 37 VSD FF compressor undergoes performance inspection before shipment to verify operating condition and system functionality.
Technical documents, qualification certificates, and export packaging are provided according to project requirements. Protective packaging is used for international transportation to reduce damage risks during long-distance shipment.
Supporting compressor parts and maintenance components can also be supplied together to simplify spare parts procurement.
We are an Atlas Copco compressor supplier and after-sales service provider in China, offering compressor units, spare parts, and technical support for international customers.
Standard delivery time is usually 1-2 weeks for available products. For customized requirements or larger orders, delivery time may vary according to configuration and quantity.
We operate as an Atlas Copco after-sales service center in China with professional compressor maintenance facilities and technical support capabilities.
New Atlas Copco compressor units are supplied with a 1-year warranty.
The service life depends on operating conditions, maintenance frequency, and usage environment. With proper maintenance and regular servicing, industrial screw compressors can typically operate for many years.
Technical support is available for compressor operation guidance, maintenance consultation, spare parts selection, and troubleshooting assistance.
