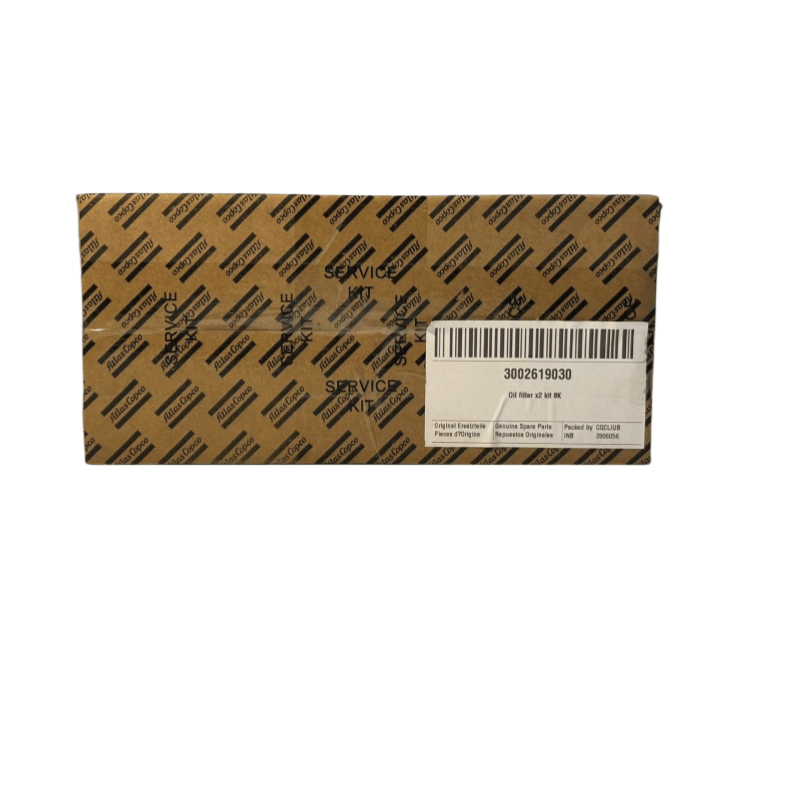

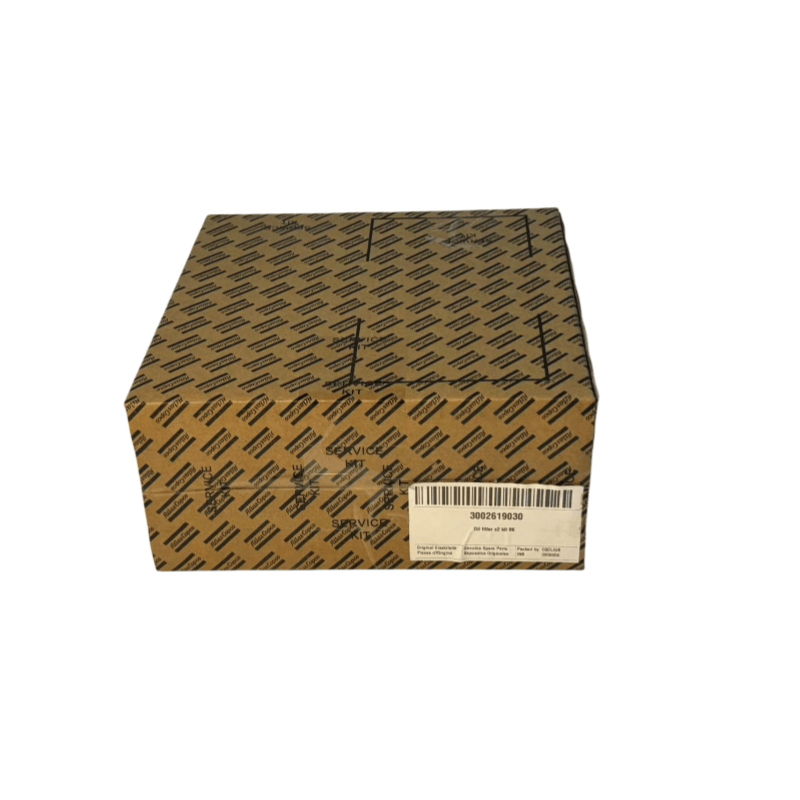

3002619030 ATLAS COPCO Air compressor OIL FILTER X2 KIT 8K GENUINE

ATLAS COPCO Air compressor OIL FILTER X2 KIT 8K set mainly consists of the following core components (exact details may vary depending on the actual product):

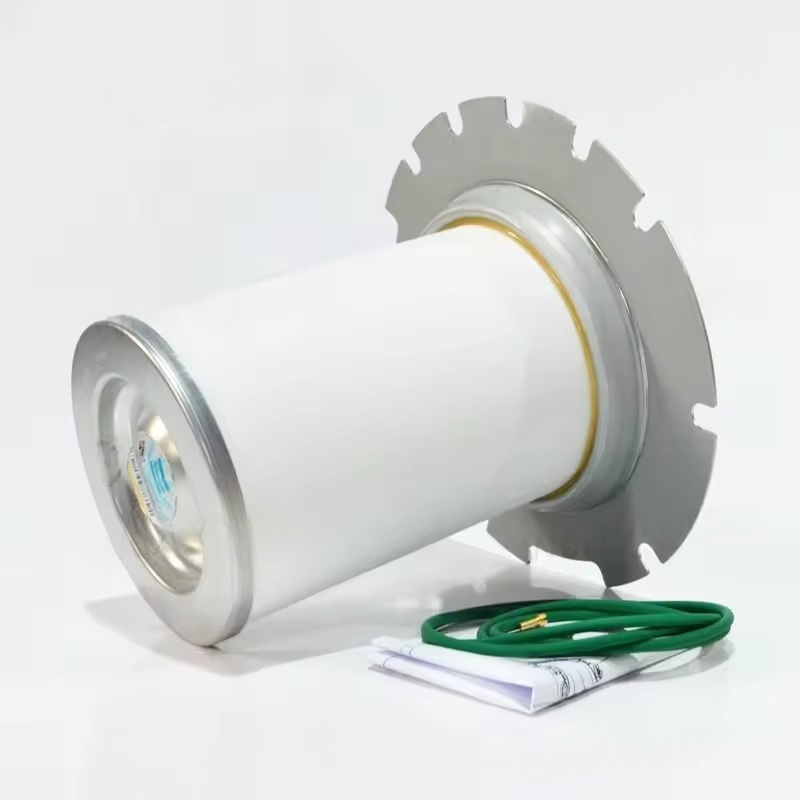

Oil filter element: Made of high-grade filtering materials (such as glass fiber or composite filter paper), with a filtration accuracy typically ranging from 10 to 20 microns, capable of effectively intercepting solid impurities generated during the lubricating oil circulation.

Sealing ring / gasket: Made of food-grade or oil-resistant rubber, used for sealing the filter element and filter seat to prevent bypass leakage of unfiltered oil.

Installation accessories: Some kits may include drain plugs, sealing tapes, and other auxiliary installation components. Applicable scenarios

Compatible Models: Primarily used for the specific series of oil-injected screw air compressors by Atlas Copco (such as GA, G series, etc.). The compatibility needs to be confirmed based on the model and power of the air compressor.

Replacement Cycle: It is generally recommended to replace the filter according to the maintenance cycle specified in the equipment manual (usually after 1000-2000 hours of operation or 6 months, whichever comes first). In harsh conditions, the cycle should be shortened.

Core Function

Impurity Filtration: Remove metal debris, dust, carbon deposits, etc. from the lubricating oil to prevent abrasive wear of the precision components such as the rotor and bearings of the main unit.

Oil Protection: Reduce the catalytic oxidation effect of impurities on the lubricating oil, delay oil aging, and maintain its viscosity and lubrication performance.

System Stability: Prevent insufficient oil supply or excessive pressure difference caused by filter blockage, ensuring the stability of the lubricating oil circulation system.

Replacement and Precautions

Preparation Before Replacement: Shut down the machine and release the system pressure. Wait for the oil to cool down (to avoid scalding from hot oil).

Standard Operating Procedures:

When removing the old filter element, pay attention to collecting the residual oil to avoid environmental pollution.

Before installing the new filter element, check if the sealing ring is intact. You can apply a small amount of clean lubricating oil on the sealing ring to ensure a reliable seal.

Tighten the filter element according to the specified torque (usually no need to over-tighten to prevent damage to the filter seat or sealing ring).

After Replacement: After starting the machine, check if there is any leakage around the filter seat. During the initial operation, pay attention to the oil filter pressure difference gauge (if available) to confirm that the filter element is installed correctly.
