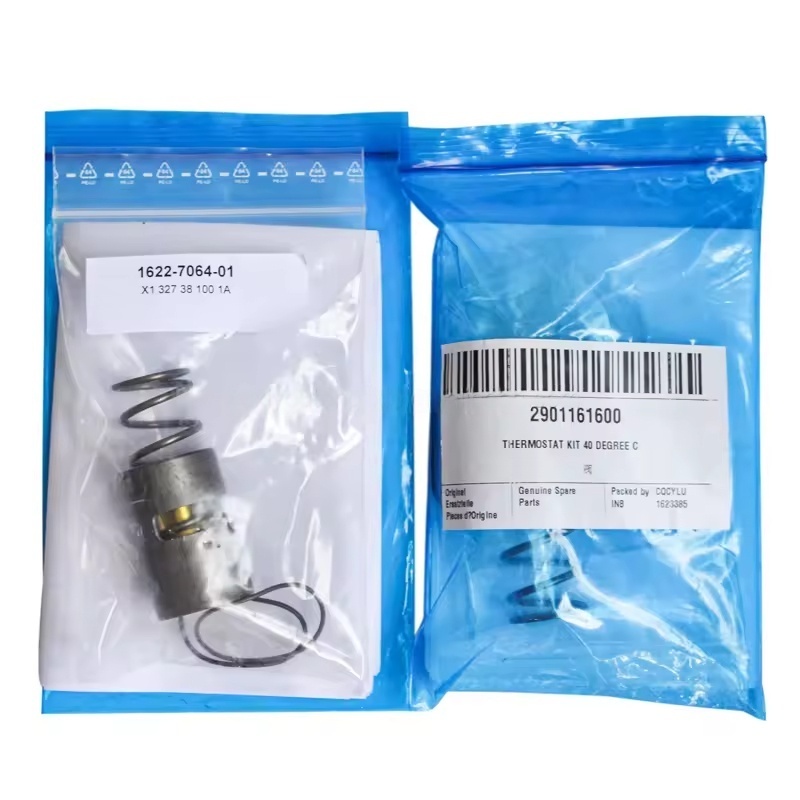

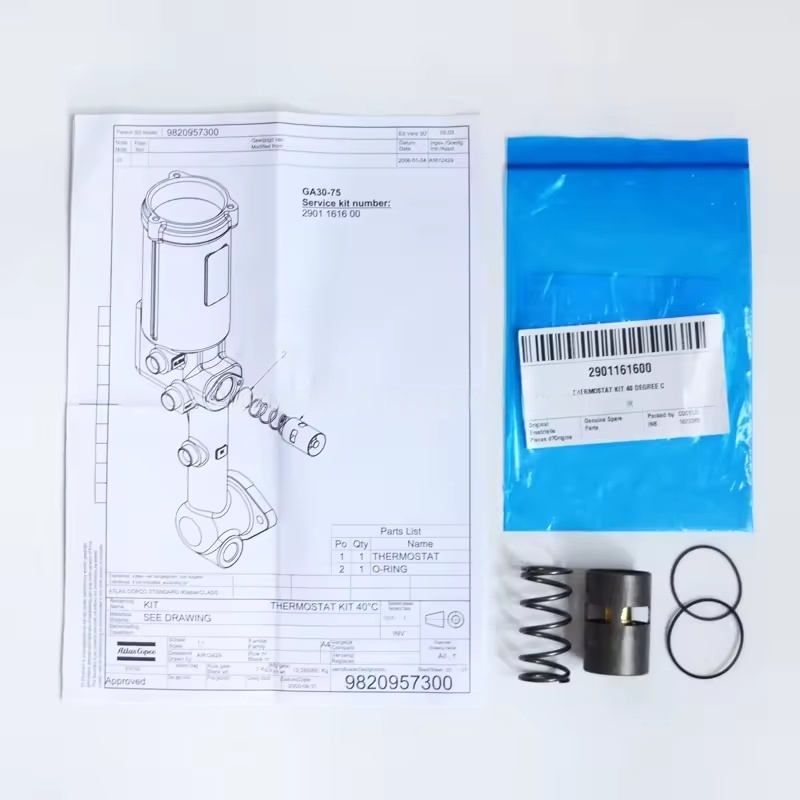

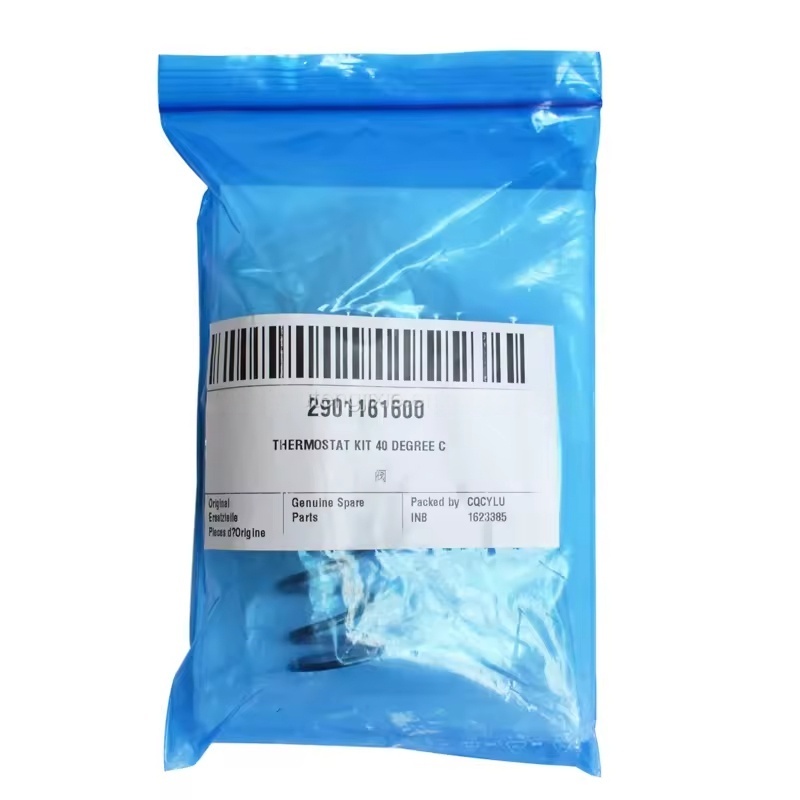

2901161600 Atlas Copco

Atlas Copco 2901161600 compressor temperature control valve 1. Core function and working principle

Temperature regulation

The temperature control valve can monitor the temperature of the lubricating oil or compressed air in the air compressor and automatically adjust the flow of the cooling system to ensure that the equipment operates within the optimal temperature range.

When the temperature is lower than the set value, the valve will close or cut off the cooling path, reducing the cooling volume and preventing the compressed air from condensing and generating moisture; when the temperature is higher than the set value, the valve will open or increase the cooling path, enhancing the heat dissipation effect and preventing the equipment from aging or the lubricating oil from deteriorating due to overheating.

Protection function

Preventing unstable oil film due to excessive cooling (affecting lubrication effect), or mechanical failures caused by overheating (such as rotor jamming, seal failure, etc.).

2. Common types and application scenarios

Oil temperature control valve: used for screw-type air compressors, for controlling the temperature of the lubricating oil, and is the most common type (such as GA series, ZR series are more commonly used).

Air temperature control valve: in some models, used to adjust the post-treatment temperature of compressed air to ensure the quality of downstream gas supply.

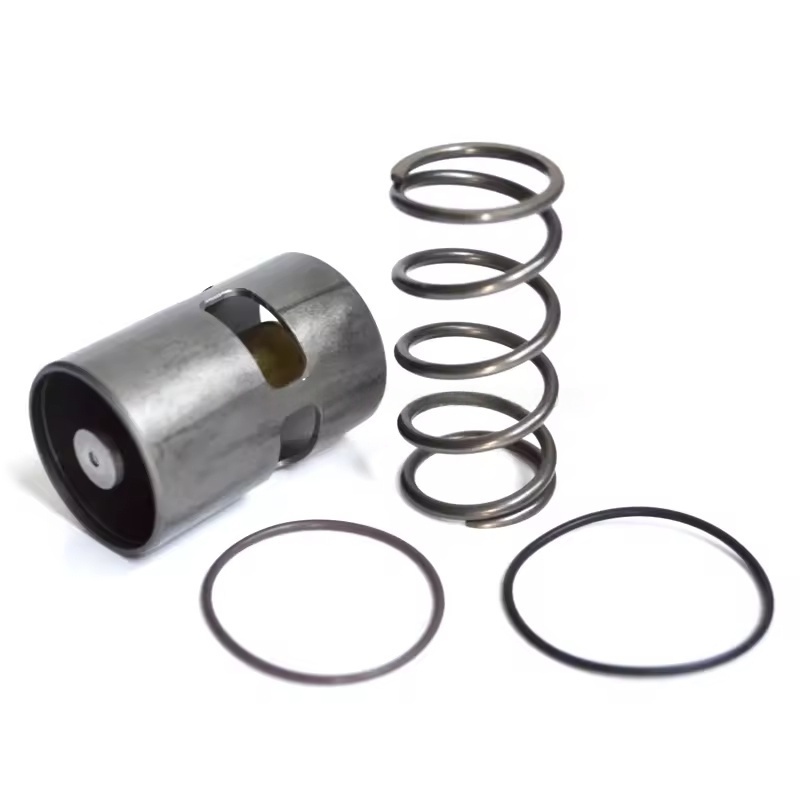

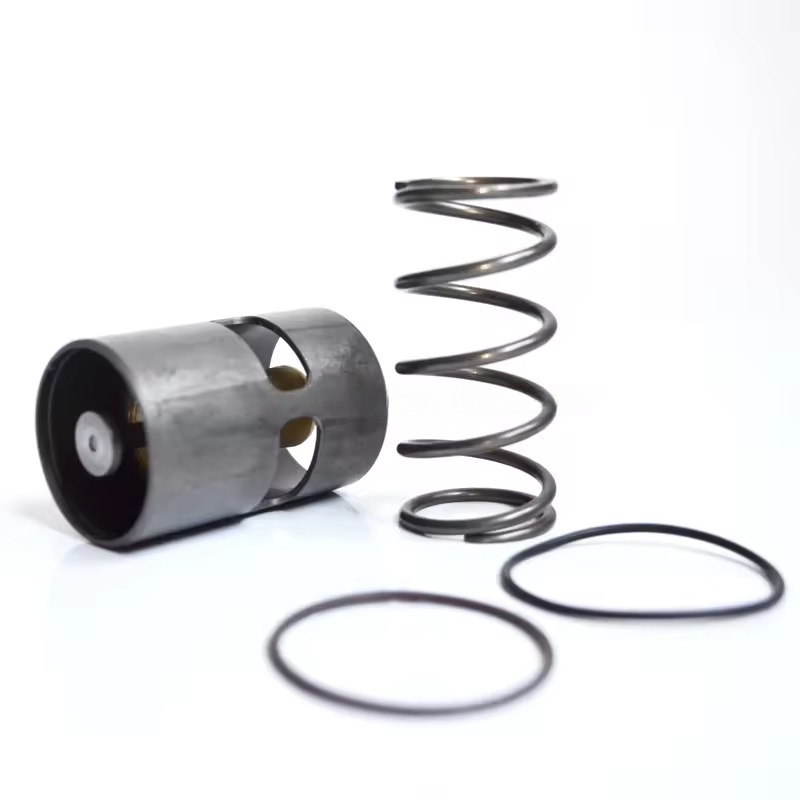

Structurally, it is mostly mechanical feedback type (without external power supply), sensing temperature changes through wax temperature sensing elements or metal bellows, and achieving automatic opening and closing.

3. Fault manifestations and maintenance tips

Common faults

Valve stuck: Due to the accumulation of oil and impurities, the valve cannot open or close normally, causing the equipment to remain at high or low temperatures.

Temperature sensor failure: Inaccurate temperature sensing, resulting in control failure.

Seal failure: Oil or water leakage, affecting the cooling efficiency.

Maintenance suggestions

Regular inspection: Combined with the maintenance cycle of the air compressor (such as every 2000 - 4000 hours), check if the valve operates flexibly and if there is any leakage.

Cleaning and maintenance: Clean the internal components of the valve, remove oil and impurities to avoid sticking.

Timely replacement: If the valve fails (such as frequent high-temperature alarms of the equipment), replace the original components (such as model 3112009400, etc., need to match the model) to ensure compatibility with the system.
