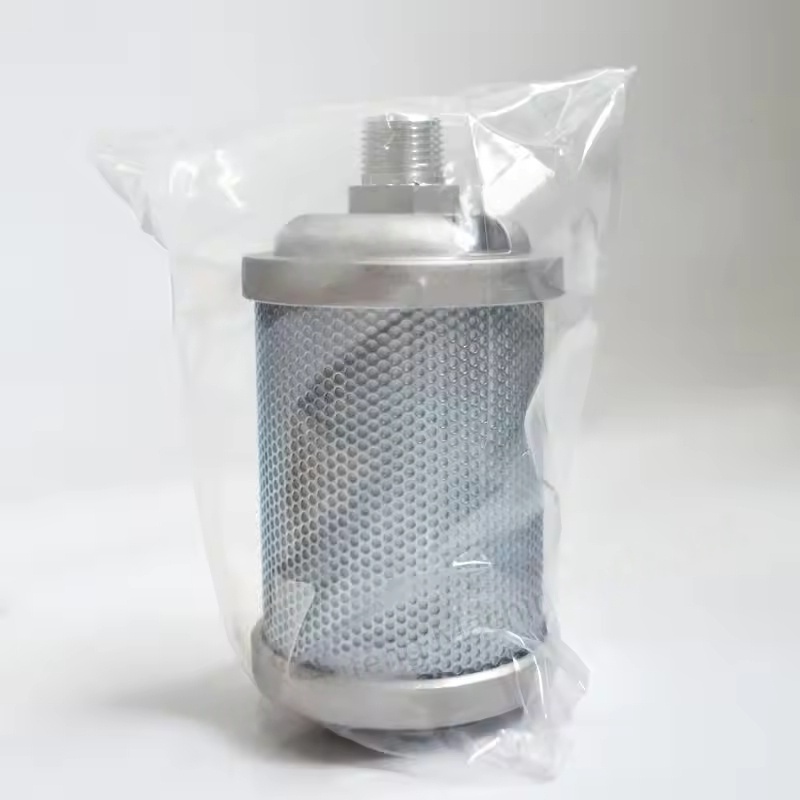

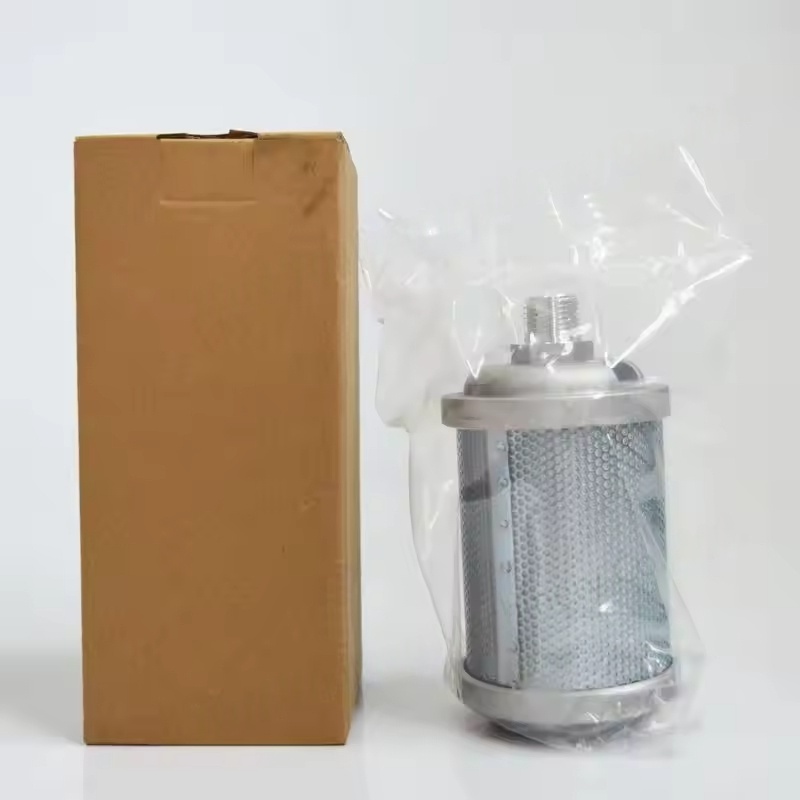

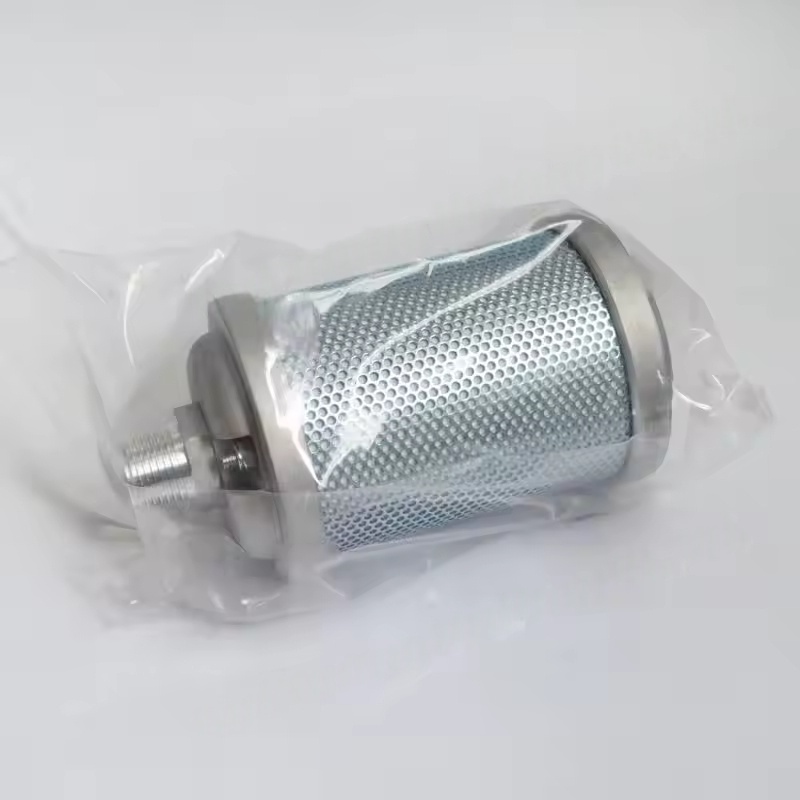

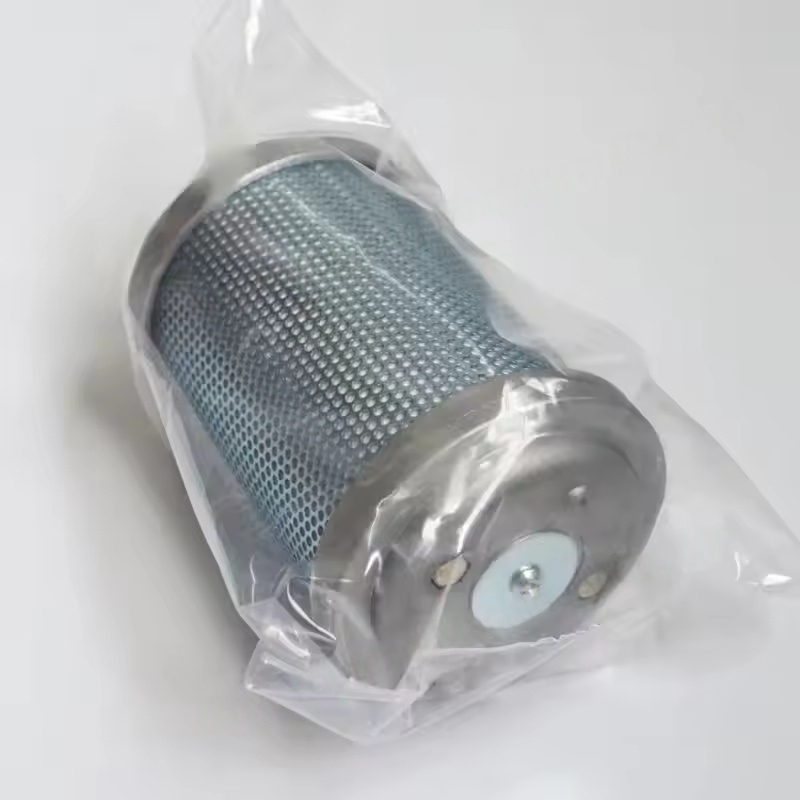

Original Atlas Copco Adsorption Dryer Accessories Spare Parts Silencer 1617617300

Core Functions of Atlas Copco Adsorption Dryer Silencer

Noise Reduction and Sound Suppression

During the regeneration process of the adsorption tower in the adsorption dryer, moisture-laden compressed air is discharged. When the airflow passes through the exhaust port at high speed, it generates significant noise (typically ranging from 80 to 100 decibels). The silencer disperses the airflow through its internal porous structure (such as sound-absorbing cotton, metal mesh, or labyrinth channels), reduces the flow velocity, and controls the noise to below 70 decibels (in line with industrial noise standards), thereby minimizing the impact on operators and the environment.

Filtering Impurities

Some silencers integrate a simple filtering function, which can intercept small amounts of adsorbent dust (such as molecular sieve particles, activated alumina powder) that may be carried in the regeneration exhaust gas, preventing it from being directly discharged into the air and causing pollution.

Protecting the Exhaust System

Slowing down the impact of the high-speed airflow on the exhaust pipe, extending the service life of the exhaust port and the pipeline.

Common Models and Compatibility

The Atlas Copco silencer models are usually matched with the dryer series. For example:

Silencer for small adsorption dryers (such as the DD series), with smaller diameters (such as G1/2" and G3/4");

Silencer for large dryers (such as the CD series), with larger diameters (such as G1" and G1.5), and a more pressure-resistant structure (usually with a pressure tolerance of 10 to 16 bar).

The specific model needs to be selected based on the exhaust port size and working pressure of the dryer to ensure installation sealing and noise reduction effectiveness.

Maintenance and Replacement

Regular Inspection:

Check if the silencer is damaged or clogged (if there is obvious dust accumulation on the surface or a decrease in the exhaust flow rate, it may be internal blockage);

Listen for abnormal increases in exhaust noise (if the noise suddenly increases, it may be damage to the internal sound-absorbing structure).

Cleaning and Replacement:

For washable silencers (metal material), they can be disassembled and cleaned with compressed air periodically;

If there is severe damage, clogging, or a significant decline in noise reduction effect, replacement is necessary (it is recommended to use original factory parts to ensure compatibility with the dryer).
