I. Core Performance Parameters
Motor Power: 11 kW (approximately 15 horsepower), using an efficient three-phase asynchronous motor, meeting international energy efficiency standards (IE3 level), with better energy consumption performance than the industry average.
Exhaust Volume: 1.2 - 1.8 m³/min (varies depending on working pressure; the higher the pressure, the lower the exhaust volume).
Working Pressure Range: 7 - 10 bar, adjustable according to actual needs, meeting the pressure requirements of most small and medium-sized industrial applications.
Power Supply Specifications: 380V/3Ph/50Hz (standard), compatible with most industrial power supply systems worldwide.
Storage Tank Capacity: Optional 50 - 200L storage tanks (some models integrated), ensuring stable gas output pressure and reducing frequent loading/unloading.
II. Technical Features and Advantages
Efficient Compressor Technology
Adopting Atlas Copco's patented "rotating rotor type line", the compression process is smoother, with a volumetric efficiency 5% - 10% higher than ordinary models, directly reducing unit gas production energy consumption.
Optimized Oil-Gas Separation System, with compressed air oil content reduced to below 3 ppm, minimizing pollution to downstream equipment and prolonging the lifespan of pneumatic components.
Compact Design and Low Noise
The entire machine is small in size (approximately 1200×850×1000mm), with a small footprint, suitable for space-constrained scenarios in workshops and factories.
Fully enclosed soundproof cover + low-noise motor design, with operating noise controlled at 73 - 76 dB (A), superior to similar products, reducing interference to the working environment.
Reliability and Easy Maintenance
Core components (rotor unit, bearings, seals) are manufactured by the original factory with strict durability tests, having a long Mean Time Between Failures (MTBF), supporting continuous 24-hour operation.

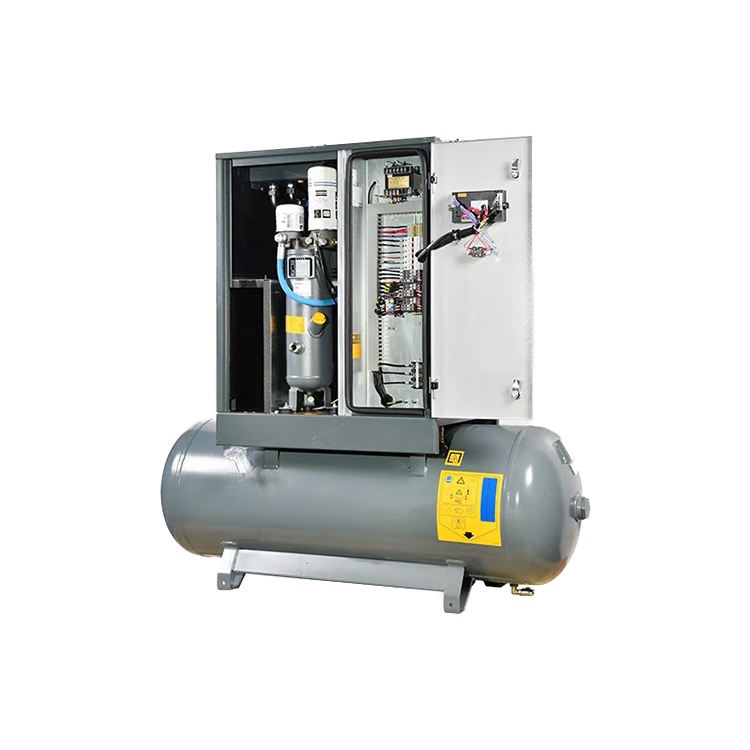

Modular Maintenance Design: The side door can be fully opened, allowing easy access to key maintenance points such as filters, oil level observation windows, and pressure gauges, eliminating the need for professional tools for daily maintenance (such as oil changes, filter replacements), reducing downtime.
Intelligent Control Options
The basic model is equipped with a simple control panel, displaying key information such as pressure, operating status, and fault codes, supporting manual start/stop and overload protection.
Optional Elektronikon® intelligent controller: enabling automatic loading/unloading, timed start/stop, remote monitoring (requires a network module), maintenance reminders, etc., allowing viewing of equipment operation data through mobile phones or computers, facilitating precise management.
III. Application Scenarios
Small and medium-sized manufacturing workshops: driving pneumatic wrenches, drilling machines, sanding machines, etc.
Food packaging / pharmaceutical auxiliary: providing clean gas sources for pneumatic packaging machines, conveying equipment (using filters in combination).
Automobile repair / 4S stores: for tire inflation, operation of pneumatic tools, etc.
Laboratories / small production lines: meeting low-flow, stable-pressure gas usage requirements.
IV. Differences from G11FF
G11 is the basic model series, while G11FF is its derivative model, with the main difference being:
G11FF typically features a more compact integrated design, some models with built-in efficient filters, resulting in higher gas output quality;
G11FF may have optimizations in the cooling system, better suited for continuous operation in high-temperature environments (such as summer workshops).
