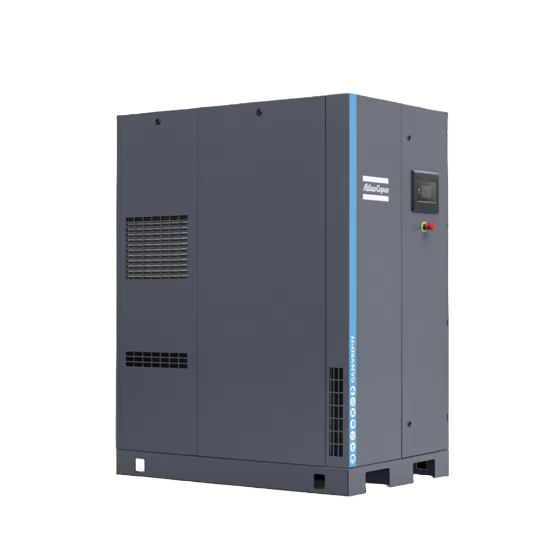

GA22 VSD Basic Parameters
Power: 22 kW (approximately 30 horsepower), the "22" in the model represents the motor power.
Displacement: Adjusted according to working pressure (commonly 7-10 bar) and rotational speed, the range is approximately 2.8-4.5 m³/min. The VSD (variable frequency drive) technology enables continuous adjustment of the displacement.
Working pressure: The standard design is 7-13 bar, and the pressure version suitable for the requirements can be selected.
Cooling method: Provides air cooling (standard) and water cooling options, suitable for different environmental conditions. Core feature
VSD Frequency Conversion Technology: By adjusting the motor speed to match the actual gas consumption, it can save up to 30% more energy compared to fixed-frequency models (especially in partial load conditions), significantly reducing operating costs.
High-efficiency Main Unit: Equipped with Atlas Copco's patented screw main unit, combined with an optimized oil-gas separation system, it has high compression efficiency and low oil content in the exhaust (typically ≤ 3 ppm).
Intelligent Control System: Equipped with Elektronikon® controller, it can monitor parameters such as pressure, temperature, and energy consumption in real time, supporting fault warning, remote monitoring (optional), and multi-machine linkage, facilitating integration into factory management systems.
Operational Stability: Utilizing heavy-duty motors and durable components, it is suitable for 24-hour continuous operation, with a long average downtime.
Low-noise Design: With a fully enclosed soundproof cover and optimized airflow path, the operating noise is as low as 65-75 dB (A), improving the working environment.
Compact Layout: Small in Floor area， flexible in installation， suitable for factories with limited space.
