I. Structure and Material of Atlas Copco Air Compressor Air Filter Housing
Basic Structure

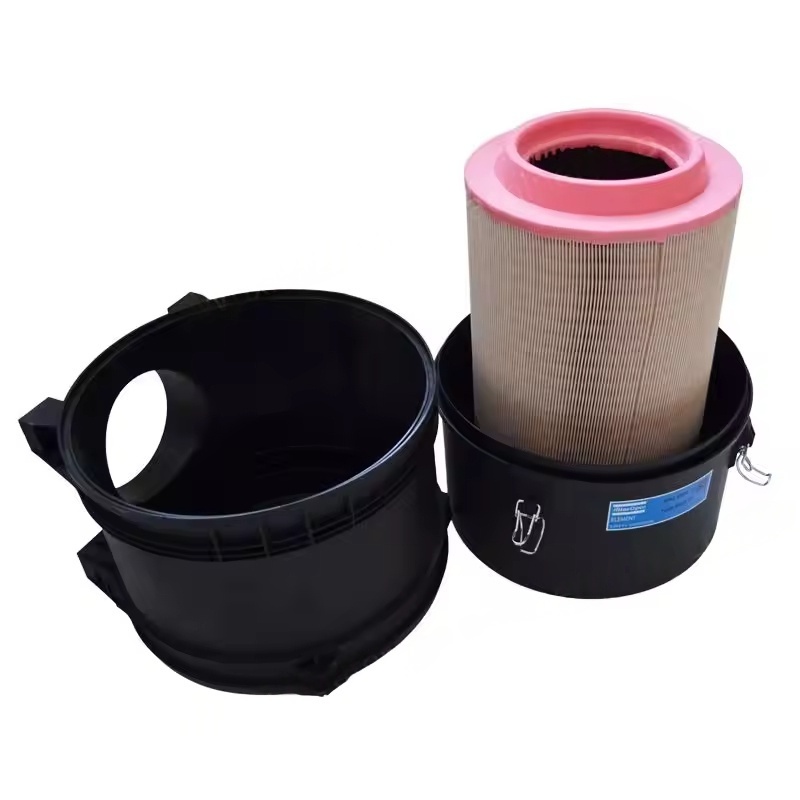

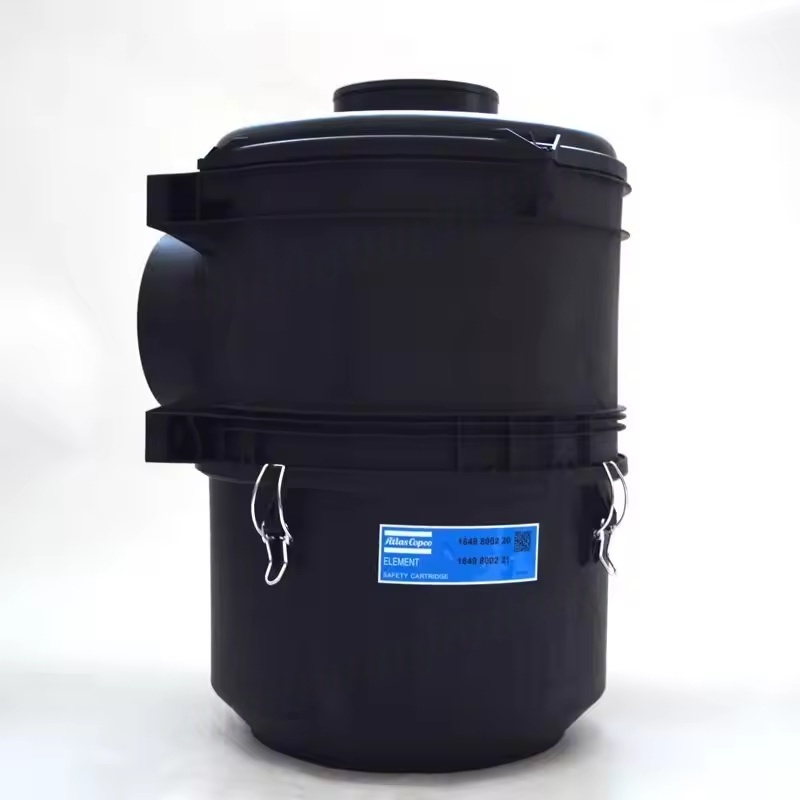

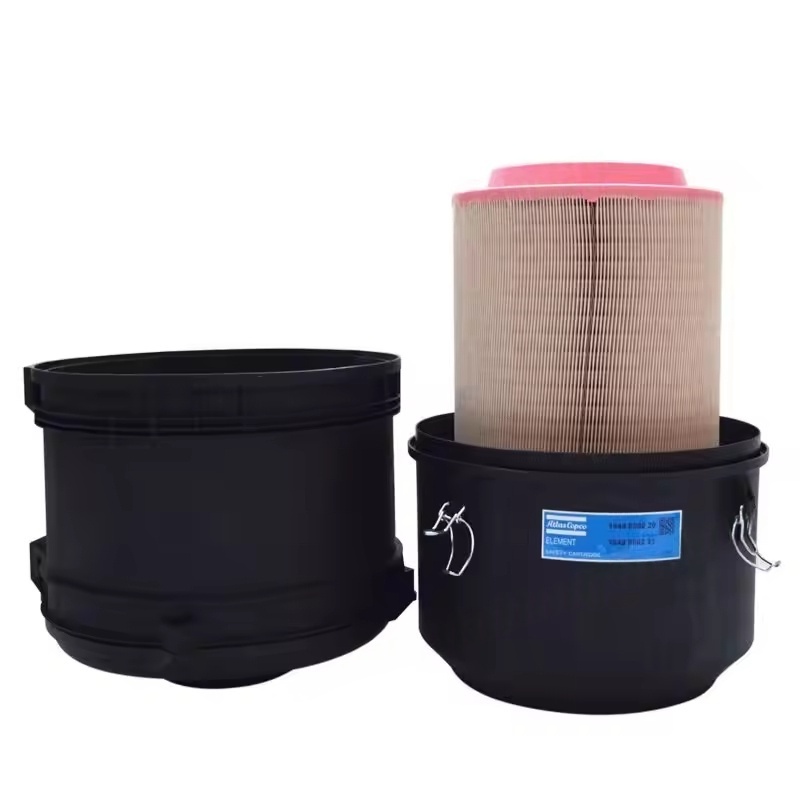

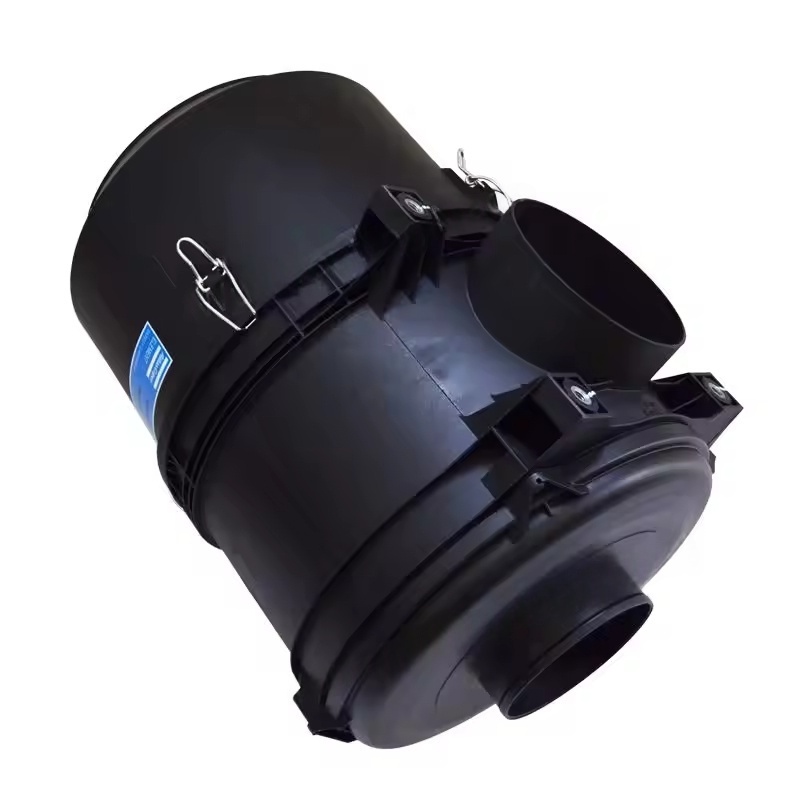

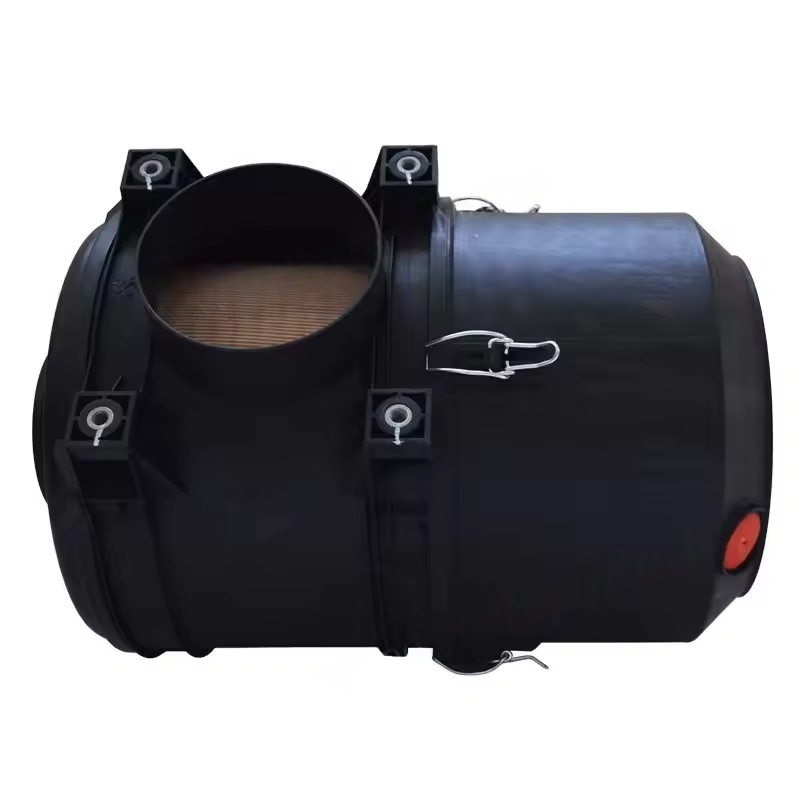

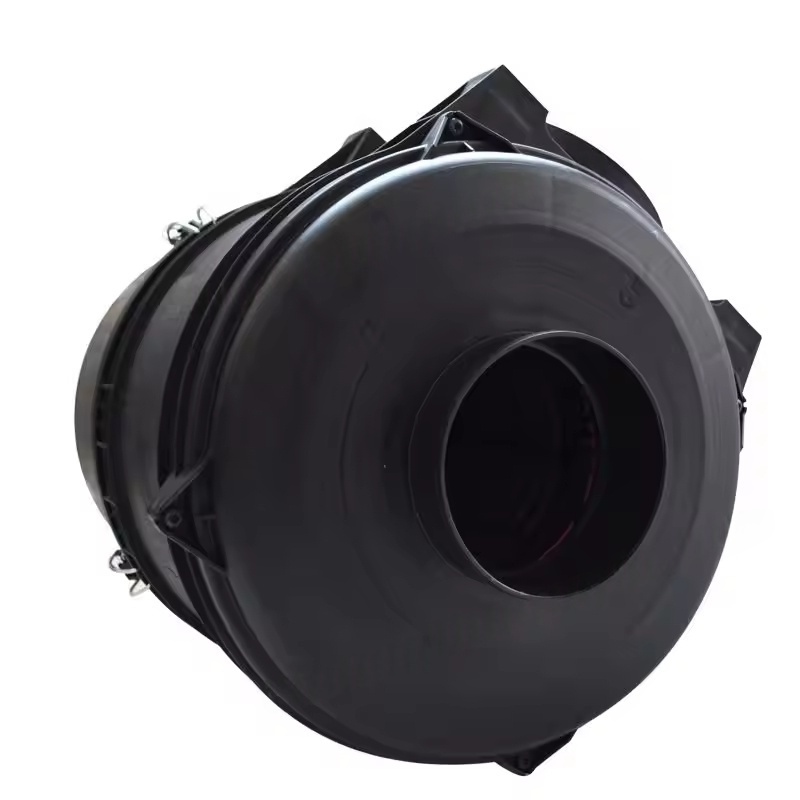

Main housing: Usually cylindrical or square in shape, forming an airflow channel inside. One end is connected to the air intake of the air compressor, and the other end is the atmospheric intake end (some with a protective cover).
Filter installation position: The inner side of the housing is equipped with slots, clasps or threaded structures for fixing the filter, ensuring a sealed fit between the filter and the housing to prevent unfiltered air from directly entering.
Sealing interface: The part connecting to the air intake pipe of the air compressor is equipped with a rubber sealing ring or flange surface to ensure the airtightness of the connection.
Auxiliary Design: Some housings have pressure difference indicator interfaces (for installing pressure gauges or alarm devices), drainage holes (to discharge internal condensate water), and access doors/covers (for easy replacement of the filter).
Common Materials
Metal Materials: Such as cold-rolled steel (surface galvanized or painted for rust prevention), aluminum alloy (lightweight and corrosion-resistant), suitable for large air compressors or harsh environments (such as high dust and high humidity conditions), with high strength and impact resistance.
Plastic Materials: Such as ABS engineering plastic, PP (polypropylene), lightweight, low cost, good rust resistance, suitable for small and medium-sized air compressors or clean environments, but with weaker heat resistance (usually ≤ 80℃).
II. Core Functions of Atlas Copco Air Compressor Air Filter Housing
Filter Protection: Isolate external mechanical impact, rainwater, large debris (such as leaves, insects), avoiding filter damage or clogging.
Air Flow Guidance: Through the internal streamlined design, the air flows evenly over the filter surface, avoiding a decrease in filtration efficiency due to rapid local airflow, and reducing intake resistance.
Sealing Protection: Ensure that air can only enter the air compressor through the filter, eliminating "short circuit" (unfiltered air directly entering the system), and ensuring the cleanliness of the intake.
Pressure Buffering: Buffering pressure fluctuations in the air intake during air compressor start-stop or load changes, stabilizing the intake volume.
III. Key Parameters and Selection of Atlas Copco Air Compressor Air Filter Housing
Size Specifications: Need to match the outer diameter and height of the corresponding filter, and the interface dimensions (such as the diameter of the air intake port, flange specifications) need to be compatible with the air intake system of the air compressor.
Air Intake Volume Adaptation: The internal channel cross-sectional area needs to meet the rated air intake volume requirement of the air compressor (usually designed to be ≥ 1.2 times the rated air intake volume), avoiding insufficient intake due to too small a diameter.
Temperature and Pressure Resistance: Select the corresponding material based on the air intake temperature (usually ≤ 60℃, special conditions up to 100℃ or above) and environmental pressure. Metal housings can generally withstand higher temperatures and vibrations.
Environmental Adaptability: For humid environments, aluminum or plastic housings are preferred; for dusty environments, a protective cover design is recommended; for corrosive environments, stainless steel material is required.
IV. Installation and Maintenance of Atlas Copco Air Compressor Air Filter Housing
Installation Tips:
The housing needs to be firmly fixed (especially for mobile air compressors) to avoid vibration causing loose interfaces or filter displacement.
Check if the sealing components are intact, and ensure that the filter is tightly against the sealing surface of the housing during installation. If necessary, apply a small amount of silicone grease to enhance the sealing performance.
The air intake direction needs to be consistent with the housing marking (usually indicated by an arrow), to avoid installation errors that lead to filter failure.
Maintenance Matters:
Regularly (in sync with the filter replacement cycle) clean the interior of the housing, remove accumulated dust and debris, and check if the inner wall has any damage or deformation.
Metal housings need to check if the rust coating has peeled off and timely repaint for rust prevention; plastic housings need to avoid direct sunlight or high-temperature baking to prevent aging and cracking.
When replacing the filter, also check the integrity of the sealing interface and clasps of the housing, and repair or replace if worn.
