Component composition and material characteristics

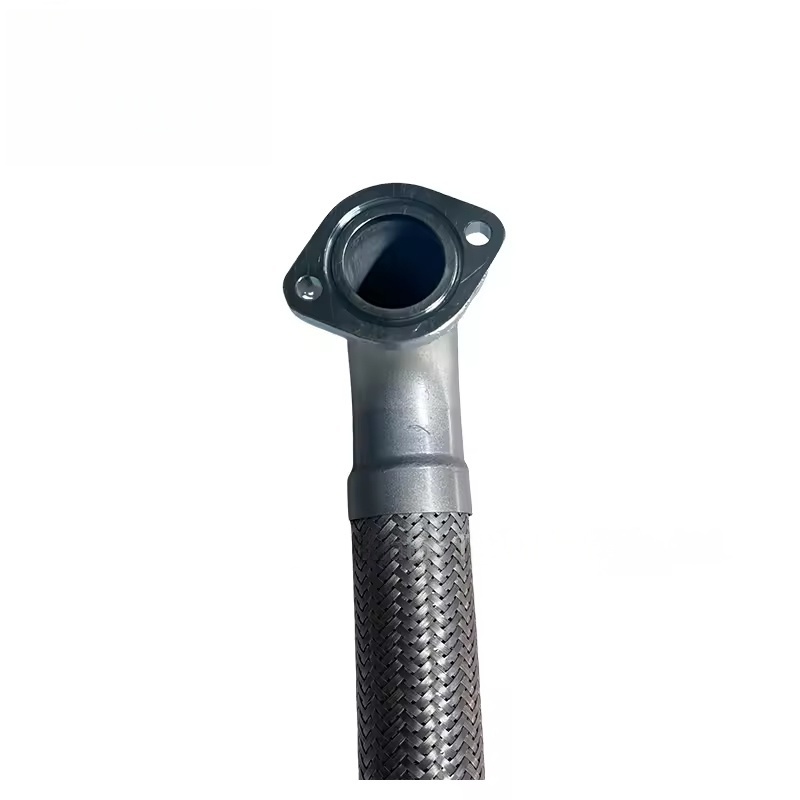

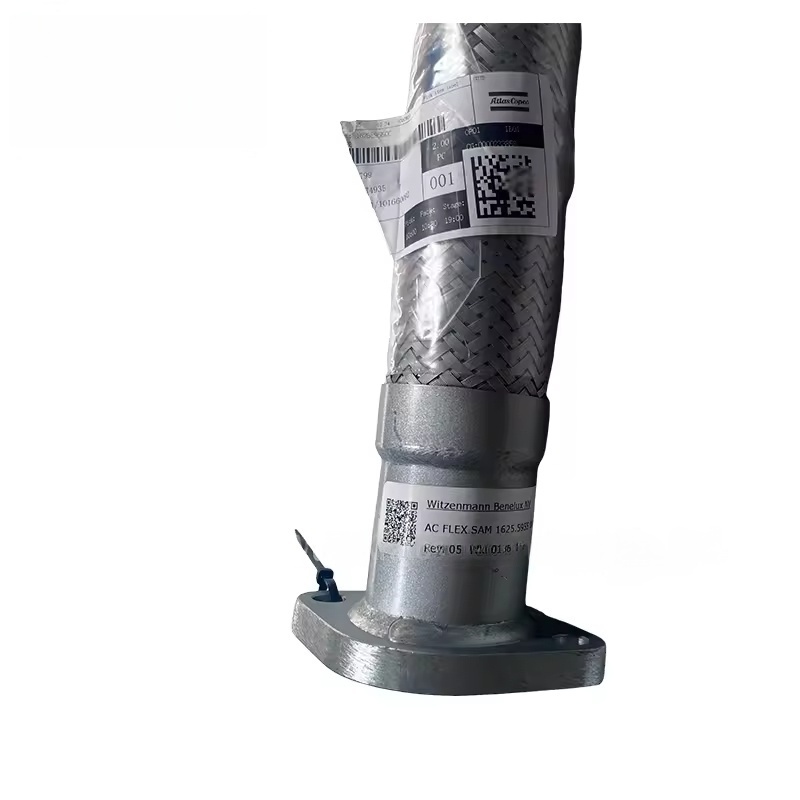

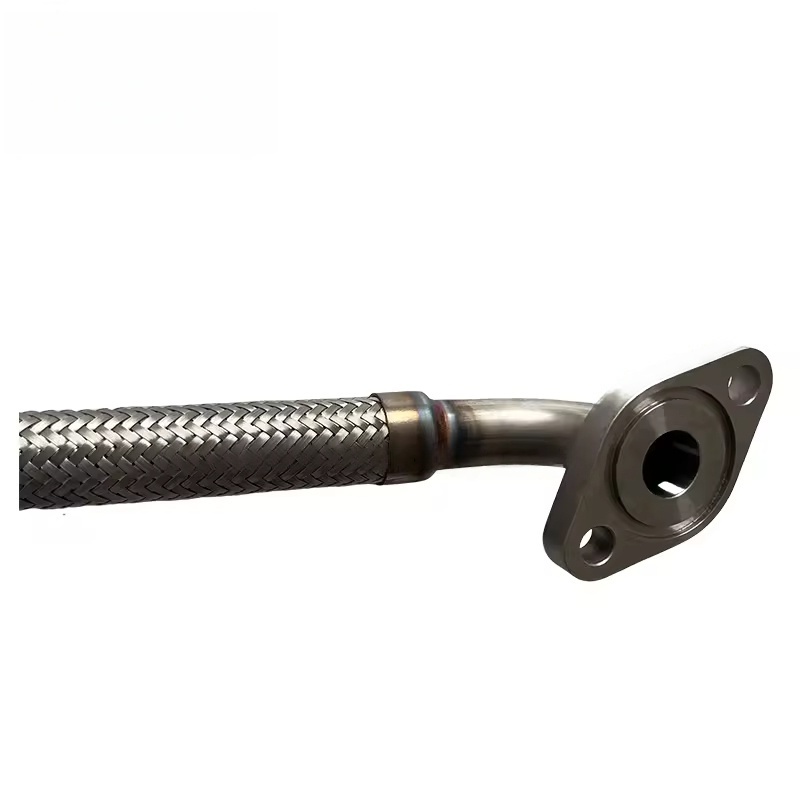

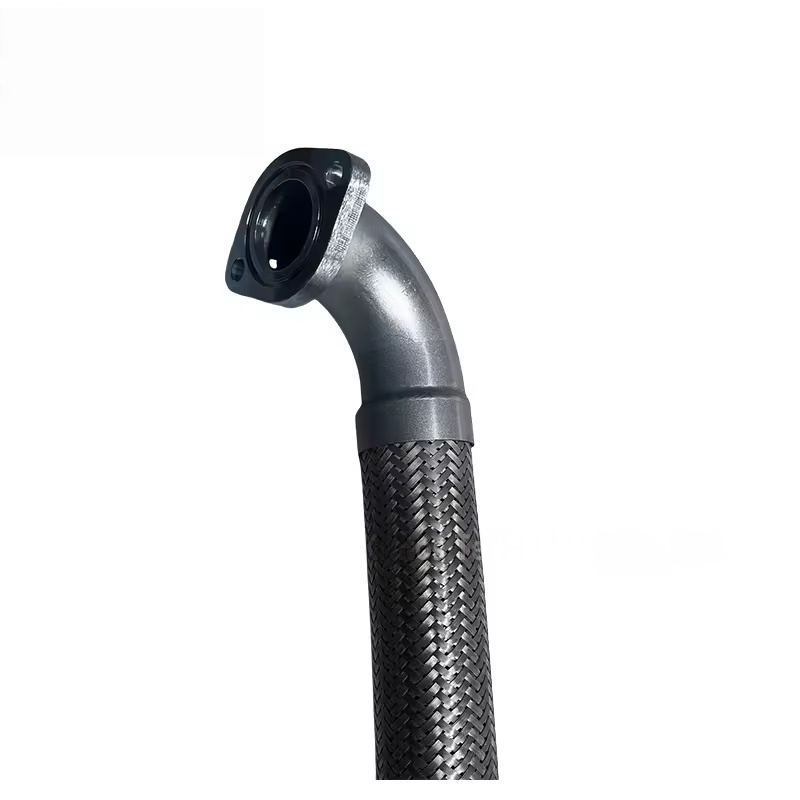

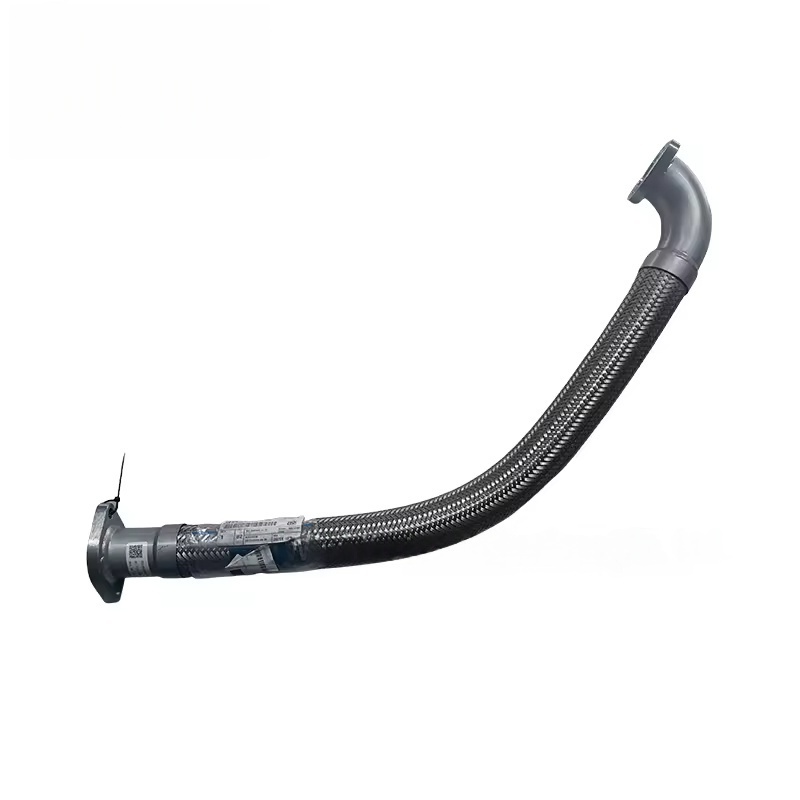

The Fx1050Xf type hose assembly usually consists of a flexible hose and matching connectors at both ends (such as threaded connectors, quick-connect connectors or flange connectors). The overall design is optimized for the operation of air compressors:
Hose body: It adopts a multi-layer composite structure, with the inner layer being oil-resistant and high-pressure-resistant synthetic rubber or PTFE material, the middle reinforcing layer being a high-strength steel wire woven mesh (the pressure rating is usually matched to the pressure of the air compressor system, generally 16-25 bar), and the outer layer being a wear-resistant and aging-resistant protective layer, which can resist mechanical friction and environmental erosion;
Connector part: It is made of corrosion-resistant metals (such as brass or galvanized steel) through precise processing, and is firmly combined with the hose through pressing or vulcanization technology to ensure sealing performance and prevent medium leakage.
Application scenarios and functions
This type of hose assembly is mainly used for the flexible connection parts in the internal structure of air compressors, such as:
Connecting the oil circuit or gas circuit between the oil separator and the cooler;
Connecting the filter, regulating valve and other components to the main pipeline;
As a buffer connection between the vibration source components (such as the main unit and pump) and the rigid pipeline, to reduce the fatigue damage of the pipeline caused by vibration transmission.
The length and connector specifications of this model have been matched by the original factory, and can perfectly adapt to the installation space and interface requirements of specific models.
Component matching and confirmation points
Since Fx1050Xf is a specific model component, when purchasing, it is necessary to pay special attention to confirmation:
Compatible models: This component usually corresponds to a specific series or power range of screw compressors (such as a certain GA series model), and the specific air compressor model (such as GA75, GA110, etc.) and the factory serial number need to be provided to confirm whether it is compatible;
Installation location: The same model may be used in different parts of the same machine, and the connection part of this hose (such as the oil circuit return pipe, gas circuit connection, etc.) needs to be specified;
Component number verification: Fx1050Xf may be an internal model or series code. It is recommended to provide the complete part number of the old component (usually engraved on the connector or label) to ensure the accuracy of the purchase.
-
