The metal control panel instrument controller switch assembly of Atlas Copco mobile air compressors, its core components and functions
Instrument display module
Equipped with high-precision pressure gauges (displaying exhaust pressure, oil pressure, etc.), thermometers (monitoring exhaust temperature, oil temperature), hour counters (cumulating running time), etc. Some models integrate digital displays, presenting key equipment parameters in real time, allowing operators to intuitively grasp the operating status.

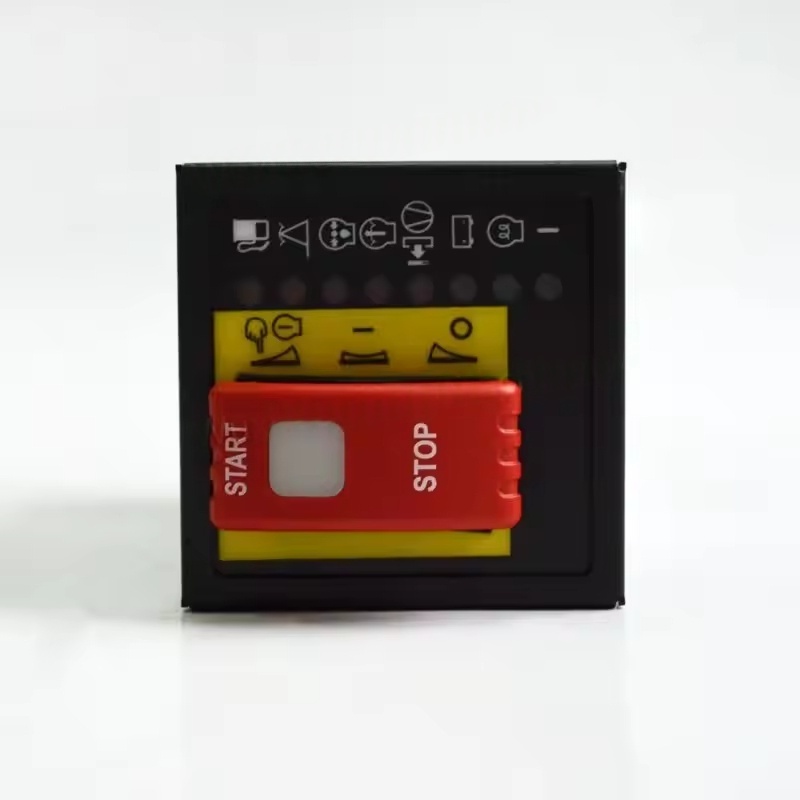

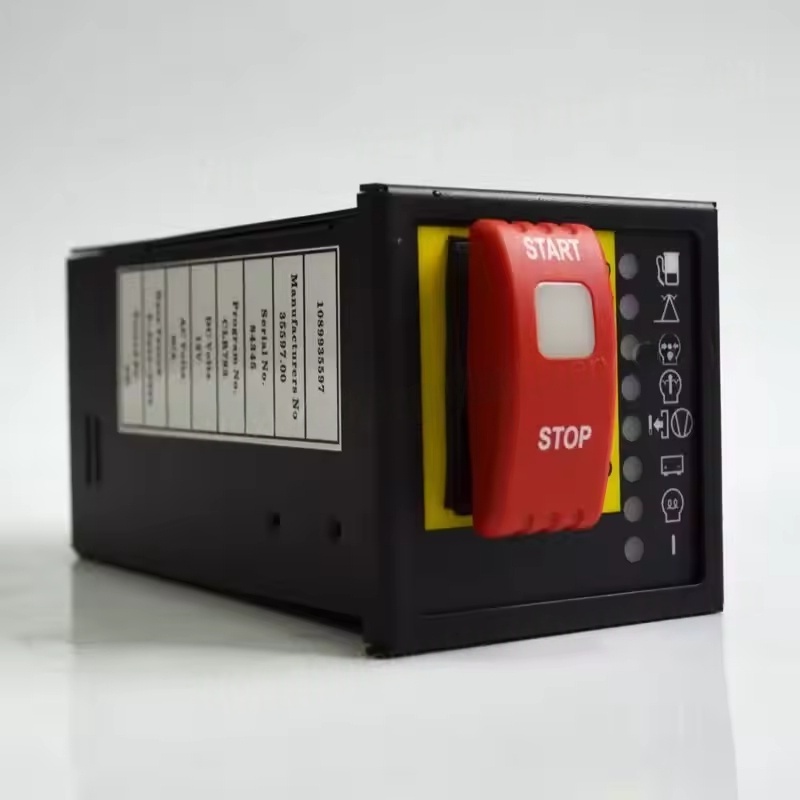

Control switch assembly
Includes main power switch, start/stop buttons, operation mode switching switches (such as manual/automatic mode), emergency stop buttons, etc. It adopts anti-misoperation design, with clear operation feedback, ensuring reliable operation in vibration, dust, etc. mobile working conditions. Some high-end models are equipped with knob-type pressure regulators, allowing precise setting of the working pressure range.

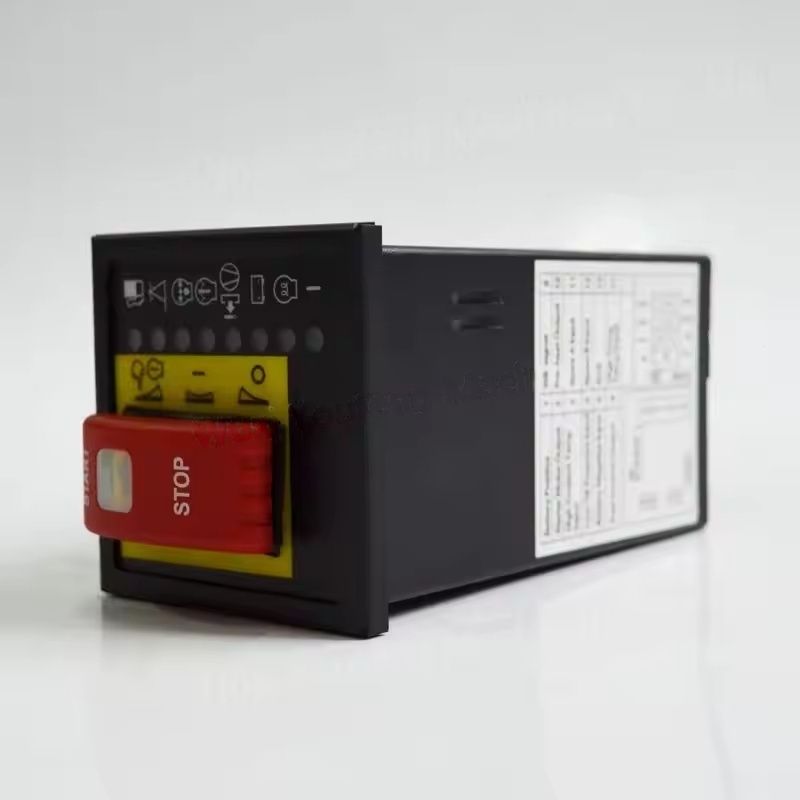

Status indication and alarm
Through LED indicator lights or buzzers, real-time feedback of the equipment's operating status (such as running, standby, fault), when overpressure, overtemperature, abnormal oil level, etc. occur, sound and light alarms are triggered to remind operators to handle promptly.
Protection and adaptation design
The metal casing is made of high-strength steel plate, with surface treated for corrosion resistance (such as powder coating or galvanization), possessing dust-proof, water-proof, and vibration-resistant properties (usually meeting IP54 and above protection grades), capable of adapting to harsh environments such as construction sites and outdoors. The panel layout is in line with the operation habits of mobile compressors, with buttons and instruments positioned for easy observation and touch during standing operation.
Performance features
High durability: Metal material is impact-resistant and wear-resistant, switch contacts use silver alloy and other arc-resistant materials to extend service life and reduce wear caused by frequent operations.
High integration: Integrating instruments, switches, and alarm functions into one, simplifying equipment wiring, improving space utilization, and adapting to the compact body design of mobile compressors.
Good compatibility: As original factory components, it perfectly matches the control system of the compressor, supporting precise signal transmission, ensuring rapid response to operation instructions.
Easy maintenance: Modular design, with each instrument, switch able to be independently disassembled and replaced, facilitating fault diagnosis and component maintenance, reducing downtime.
