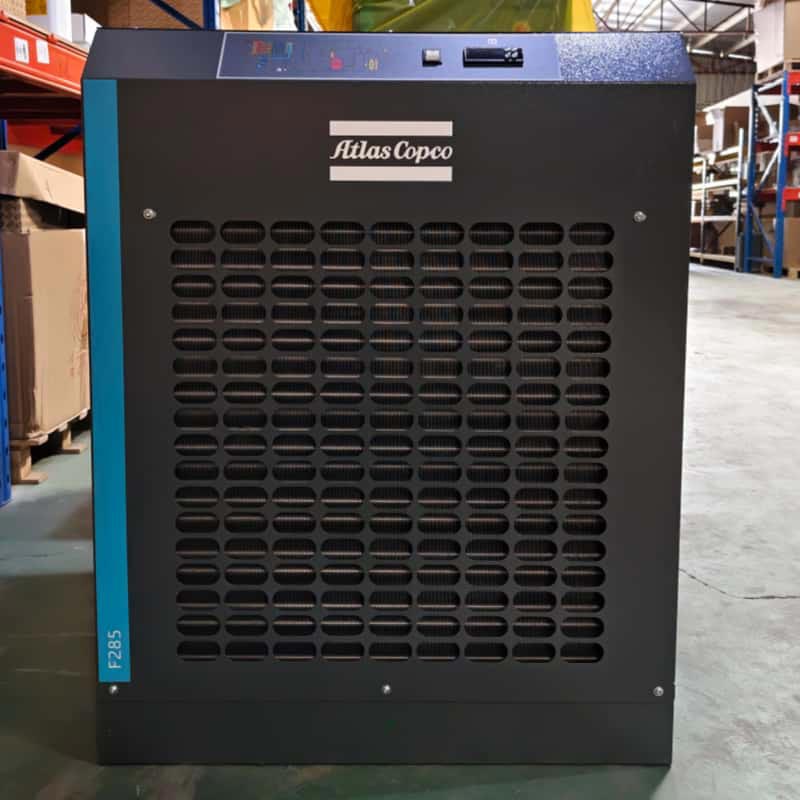

Atlas Copco F285 Refrigerant Air Dryer 17.1 M3 per Min Genuine Industrial Compressed Air Dryer 16Bar is available from our China supply network with competitive pricing and professional support. Designed for industrial compressed air systems, this genuine F-series dryer delivers stable +3°C pressure dewpoint, efficient moisture removal and reliable operation for factories, compressor stations and production facilities worldwide.
Model: Atlas Copco FD285 Air Dryer
Part Name:Atlas Copco Air Dryer
Quality Level: Genuine Original
Lead Time: 30-60 working days
Air processing capacity: 285 l/s / 17.1 m³/min / 604 CFM
Product ID reference: F285
Atlas Copco F285 Refrigerant Air Dryer China Supplier Promotional Price
Looking for Atlas Copco F285 Refrigerated Air Dryer or other F-series compressed air dryers from China? Contact us now
for the best factory price and fast delivery.
The Atlas Copco Air Dryer F285 cools compressed air down to a stable pressure dewpoint of +3°C / +37.4°F, removing moisture before it reaches your tools, instruments and production lines. Designed for continuous industrial duty, it handles up to 285 l/s (604 CFM) at a maximum working pressure of 13 bar.
Stable +3°C Pressure Dewpoint Keeps condensation out of your air network under full load conditions, protecting downstream equipment from corrosion and contamination.
High-Capacity 285 l/s / 604 CFM Air Treatment Matched to mid-to-large compressor stations, the Atlas Copco Air Dryer F285 handles high-volume airflow without pressure spikes or dewpoint drift.
Low Pressure Drop — 0.28 bar Engineered heat exchanger design minimizes flow resistance, cutting energy waste and keeping your system pressure stable.
Compact Footprint — 752 x 800 x 1020 mm At 121 kg, the F285 installs easily into existing compressor rooms with G 2.5" pipe connections, no civil works required.
1,650 W Low Power Consumption Delivers high air treatment capacity at a fraction of the running cost of older generation dryers.
Compliant with ISO 7183:2007 Every Atlas Copco F285 unit is tested to international compressed air dryer standards, supporting audit-ready industrial procurement worldwide.
| Parameter | Value |
| Model | F285 |
| Air Processing Capacity | 285 l/s / 17.1 m³/min / 604 CFM |
| Pressure Dewpoint | +3°C / +37.4°F |
| Pressure Drop | 0.28 bar |
| Power Consumption | 1,650 W |
| Max Working Pressure | 13 bar |
| Electrical Supply | 230V / 1Ph / 50Hz |
| Dimensions L x W x H | 752 x 800 x 1020 mm |
| Weight | 121 kg |
| Air Connection | G 2.5" |
| Product ID | 8956005060 |
The F285 is a straight-to-the-point industrial refrigerant dryer — 604 CFM capacity, +3°C dewpoint, 0.28 bar pressure drop, 121 kg, plug-and-run. If your station runs a GA55–GA90 range compressor and you need reliable moisture removal without complexity, this is the unit. Stock available. Lead time 30–70 working days. Contact us for current pricing.
We are an authorized Atlas Copco distributor with a large inventory, fast delivery, and competitive pricing.
In-stock items will be dispatched within 3 days.
Our products come with a one-year warranty. Extended support and spare parts are available.
Our equipment lasts 20+ years with proper care, and some models can last up to 80 years.
We offer 24/7 online technical support ad maintenance services.
We are an authorized distributor with a full-service after-sales center and 4,000+ sq.
