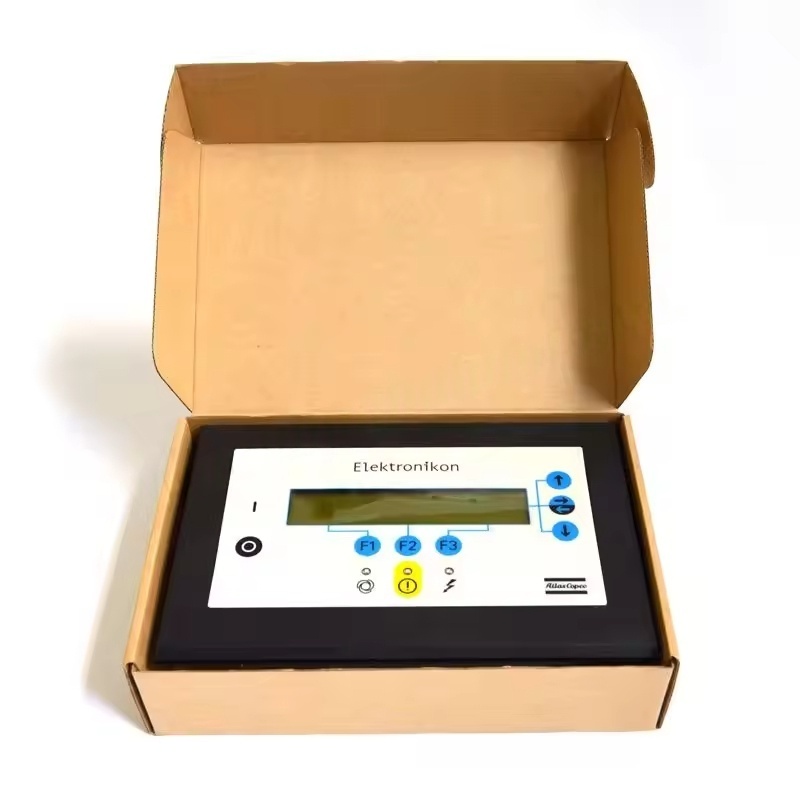

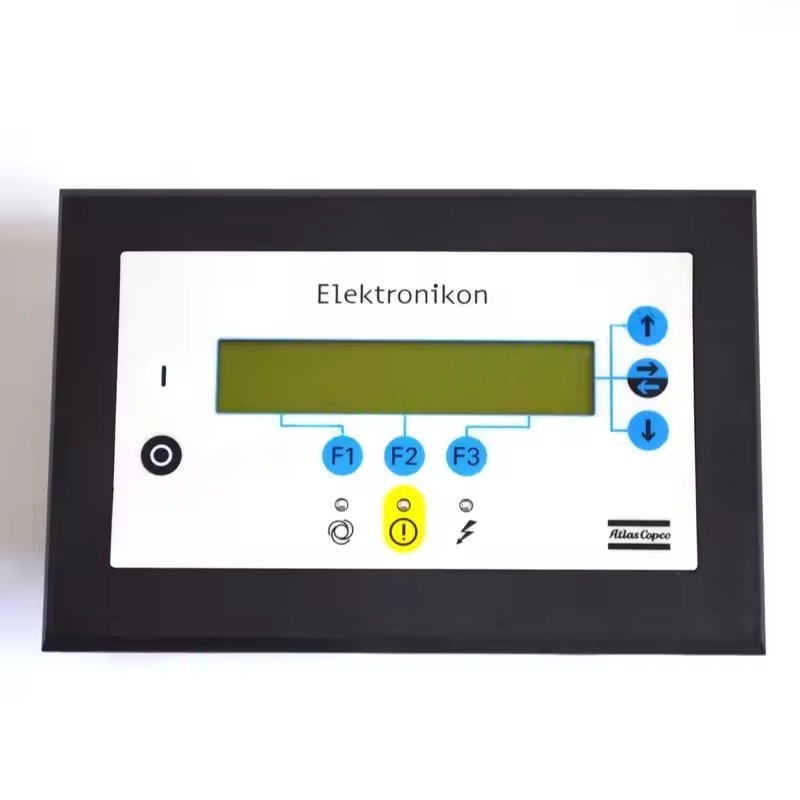

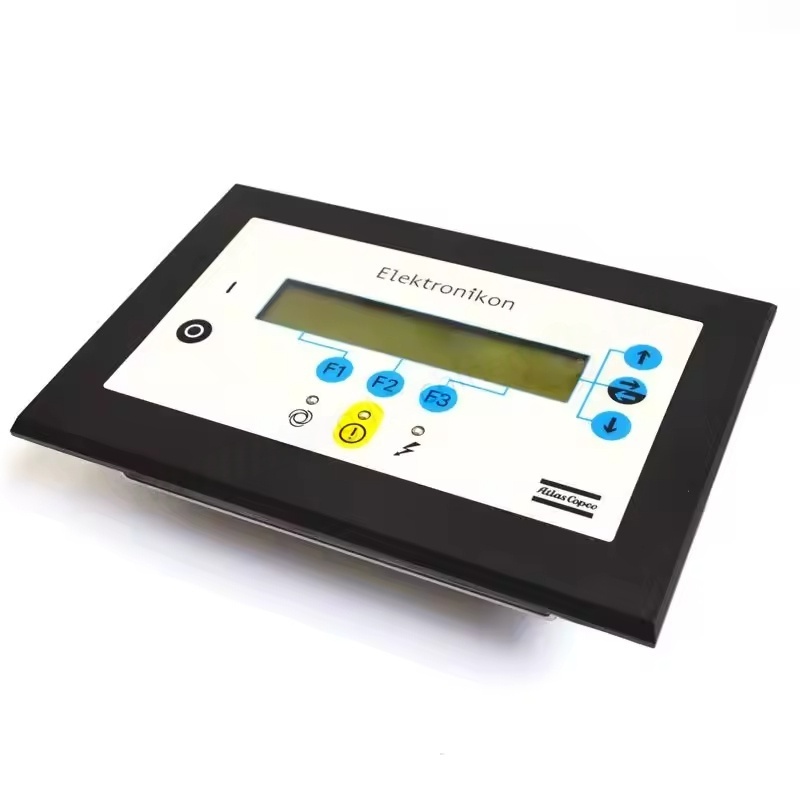

1. Core Components of Atlas Copco GA160 Control Panel Display screen
Mostly single-color or color LCD screens, displaying operating parameters, status information, and fault codes.
Language switching (including Chinese) is available, and menu-style operation is supported.
Operation keys
Start/Stop key: Controls the operation and shutdown of the air compressor (usually with local / remote control mode switching).
Menu key / Navigation key: Used to enter the settings menu, switch parameter pages, and select function options.
Confirm key / Exit key: Confirms the operation or returns to the previous menu. Some models have shortcut keys (such as the emergency stop button).
Indicator lights / Alarm lights
Operation indicator light (green): Lights up when the equipment is operating normally.
Warning light (yellow): Indicates minor abnormalities (such as filter blockage warning).
Fault light (red): Indicates severe faults (such as overload, high temperature), usually accompanied by shutdown protection.
II. Main Display and Functions of Atlas Copco GA160
Operation parameter monitoring
Real-time display of exhaust pressure, exhaust temperature, operating time, loading / unloading status.
Key data such as motor current, oil level (for some models), filter pressure difference, etc.
Operation mode settings
Automatic mode: Loads / unloads automatically based on pipeline pressure to maintain pressure stability.
Manual mode: Forced loading operation (for debugging or specific conditions).
Timed start/stop: Can preset start/stop times to achieve energy-saving control.
Fault diagnosis and recording
Displays specific fault codes (such as excessive temperature, abnormal pressure, motor failure, etc.) and reasons.
Stores historical fault records for easy traceability and maintenance.
Maintenance reminder
Based on operating time or parameter changes, prompts maintenance items (such as replacing oil filter, air filter, lubricating oil).
Can view maintenance countdown or historical maintenance records.
System settings
Adjust target pressure, pressure bandwidth, loading / unloading thresholds.
Set password protection (to prevent accidental operation), language, units (bar/psi, ℃/℉), etc.
III. Typical Operating Procedures of Atlas Copco GA160
Power on: Confirm the equipment is in normal condition, then press the "Start" key, and the display shows the start process and real-time parameters.
Adjust pressure: Enter the "Settings Menu" → "Pressure Settings", modify the target pressure through the navigation key (requires permission).
Check for faults: If the alarm light is on, enter the "Fault Record" menu to view the specific code and solution suggestions.
Maintenance reset: After completing maintenance, enter the "Maintenance Menu", perform the reset for the corresponding items, and reset the maintenance countdown.
